Nginx實現高可用集群構建(Keepalived+Haproxy+Nginx)

1、組件及實現的功能

Keepalived：實現對Haproxy服務的高可用，并采用雙主模型配置;

Haproxy：實現對Nginx的負載均衡和讀寫分離;

Nginx：實現對HTTP請求的高速處理;

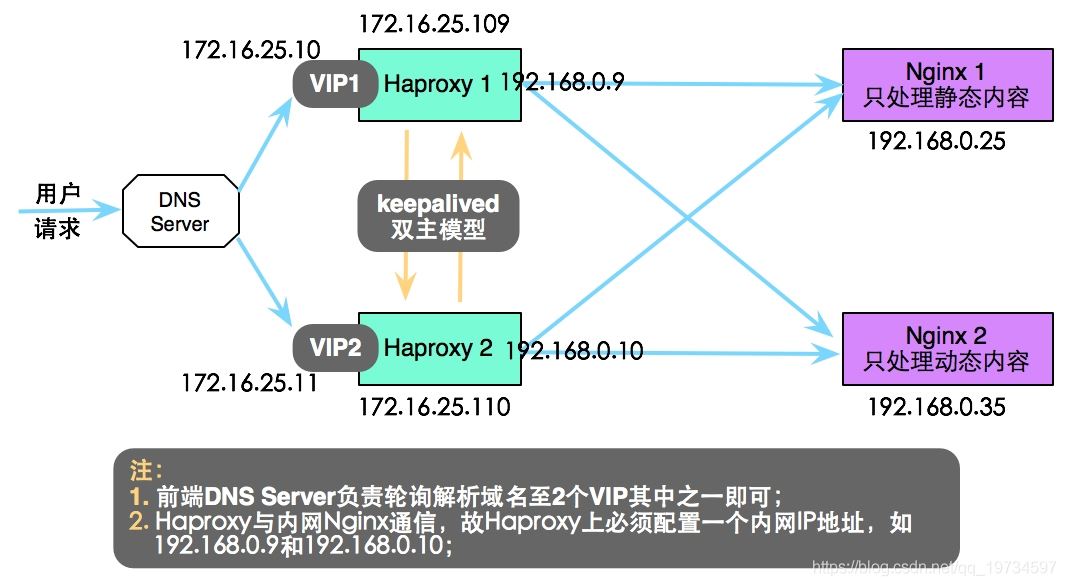

2、架構設計圖

3、Keepalived部署

在兩個節點上都需要執行安裝keepalived，命令如下：

$ yum -y install keepalived

修改 172.16.25.109 節點上 keepalived.conf 文件配置，命令如下

$ vim /etc/keepalived/keepalived.conf

修改后的內容如下：

! Configuration File for keepalived
global_defs {
   notification_email {
         root@localhost
   }
   notification_email_from admin@lnmmp.com
   smtp_connect_timeout 3
   smtp_server 127.0.0.1
   router_id LVS_DEVEL
}
vrrp_script chk_maintaince_down {
   script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
   interval 1
   weight 2
}
vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 1
    weight 2
}
vrrp_instance VI_1 {
    interface eth0
    state MASTER
    priority 100
    virtual_router_id 125
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 1e3459f77aba4ded
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.10/16 dev eth0 label eth0:0
    }
    track_script {
        chk_haproxy
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.10"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"
}
vrrp_instance VI_2 {
    interface eth0
    state BACKUP
    priority 99
    virtual_router_id 126
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 7615c4b7f518cede
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.11/16 dev eth0 label eth0:1
    }
    track_script {
        chk_haproxy
chk_maintaince_down
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.11"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"
}

同理修改 172.16.25.110 節點上 keepalived.conf 配置，內容如下：

! Configuration File for keepalived
global_defs {
   notification_email {
         root@localhost
   }
   notification_email_from admin@lnmmp.com
   smtp_connect_timeout 3
   smtp_server 127.0.0.1
   router_id LVS_DEVEL
}
vrrp_script chk_maintaince_down {
   script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
   interval 1
   weight 2
}
vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 1
    weight 2
}
vrrp_instance VI_1 {
    interface eth0
    state BACKUP
    priority 99
    virtual_router_id 125
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 1e3459f77aba4ded
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.10/16 dev eth0 label eth0:0
    }
    track_script {
        chk_haproxy
chk_maintaince_down
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.10"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"
}
vrrp_instance VI_2 {
    interface eth0
    state MASTER
    priority 100
    virtual_router_id 126
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 7615c4b7f518cede
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.11/16 dev eth0 label eth0:1
    }
    track_script {
        chk_haproxy
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.11"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"
}
# vi /etc/keepalived/notify.sh
#!/bin/bash
# Author: Jason.Yu <admin@lnmmp.com>
# description: An example of notify script
#
contact='root@localhost'
notify() {
    mailsubject="`hostname` to be $1: $2 floating"
    mailbody="`date '+%F %H:%M:%S'`: vrrp transition, `hostname` changed to be $1"
    echo $mailbody | mail -s "$mailsubject" $contact
}
case "$1" in
    master)
        notify master $2
        /etc/rc.d/init.d/haproxy restart
        exit 0
    ;;
    backup)
        notify backup $2 # 在節點切換成backup狀態時，無需刻意停止haproxy服務，防止chk_maintaince和chk_haproxy多次對haproxy服務操作；
        exit 0
    ;;
    fault)
        notify fault $2 # 同上
        exit 0
    ;;
    *)
        echo 'Usage: `basename $0` {master|backup|fault}'
        exit 1
    ;;
esac

在兩個節點上執行 keepalived 啟動命令，命令如下：

  $ service keepalived start

4、Haproxy部署

在兩個節點上都需要執行安裝 HAProxy，命令如下：

 $ yum -y install haproxy

修改 172.16.25.109 和 172.16.25.110 節點上 haproxy.cfg 文件配置（兩節點配置文件內容一致），命令如下：

 $ vim /etc/haproxy/haproxy.cfg

配置文件內容如下：

global
    log         127.0.0.1 local2
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user         haproxy
    group       haproxy
    daemon # 以后臺程序運行；
defaults
    mode                   http # 選擇HTTP模式，即可進行7層過濾；
    log                     global
    option                  httplog # 可以得到更加豐富的日志輸出；
    option                  dontlognull
    option http-server-close # server端可關閉HTTP連接的功能；
    option forwardfor except 127.0.0.0/8 # 傳遞client端的IP地址給server端，并寫入“X-Forward_for”首部中；
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 30000

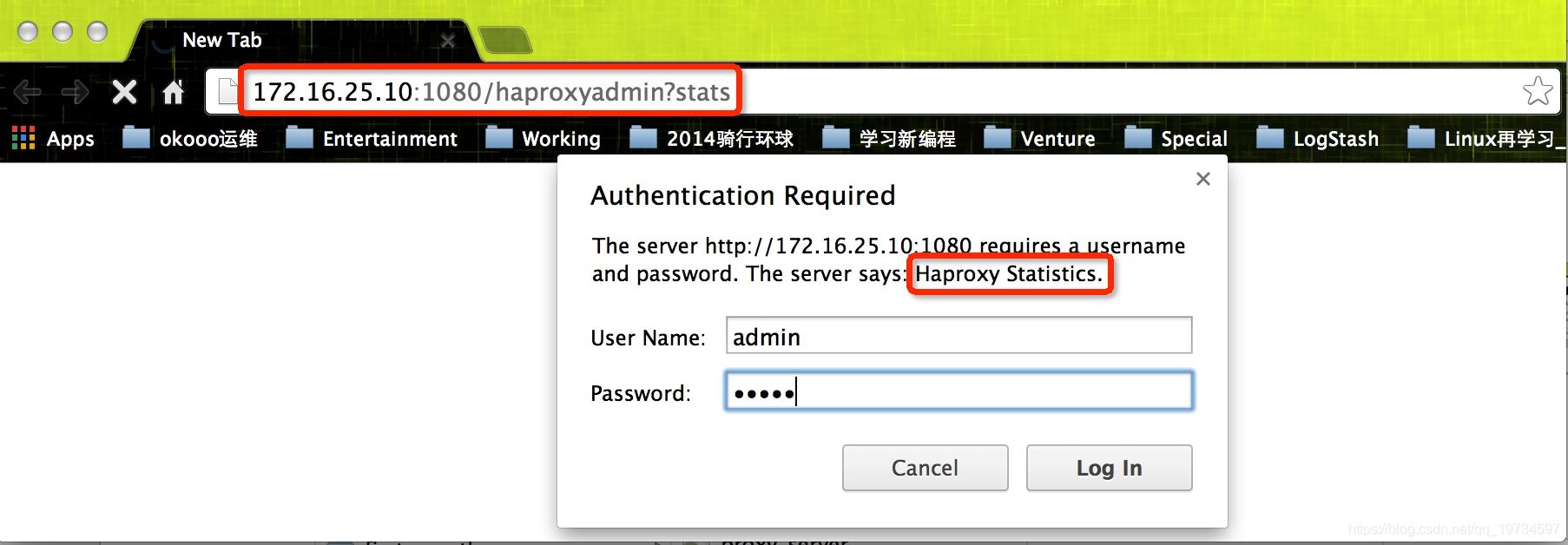

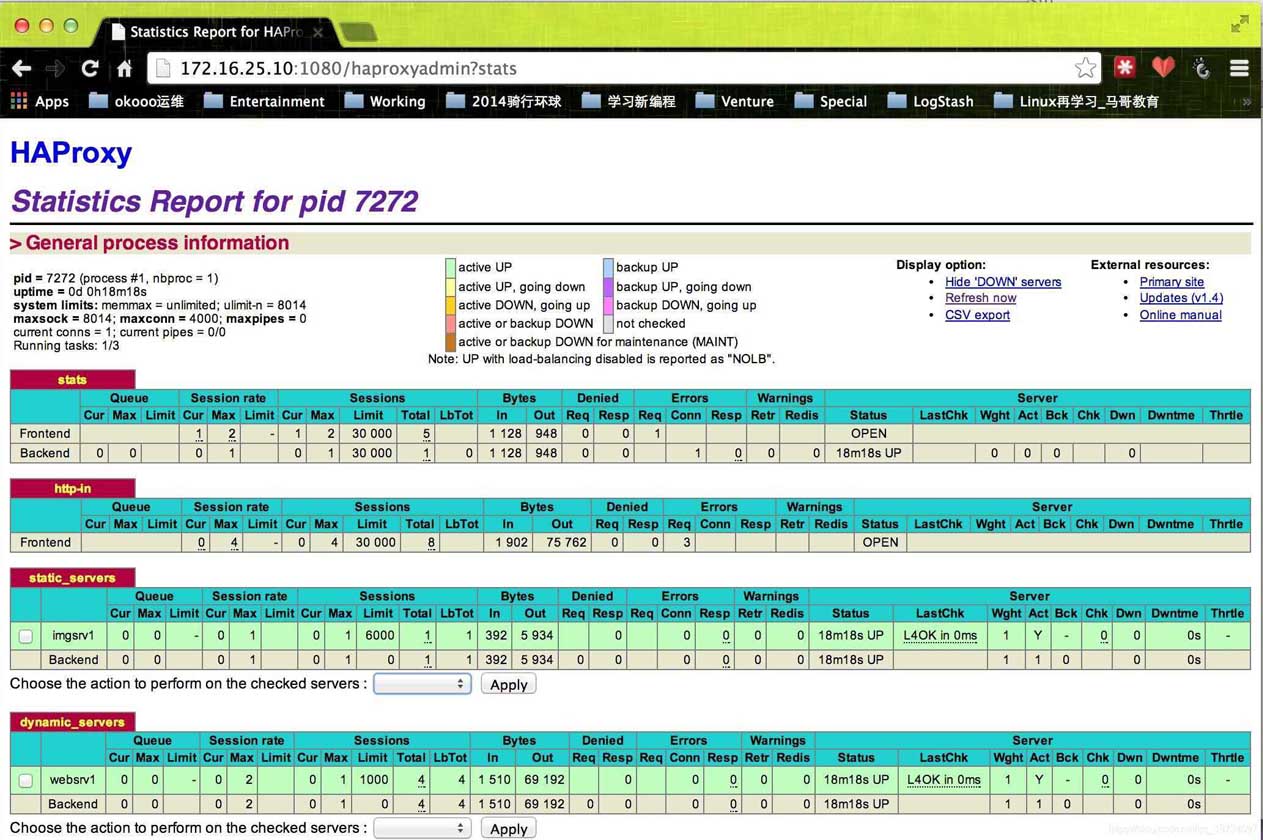

listen stats
    mode http
    bind 0.0.0.0:1080 # 統計頁面綁定1080端口；
    stats enable # 開啟統計頁面功能；
    stats hide-version # 隱藏Haproxy版本號；
    stats uri     /haproxyadmin?stats # 自定義統計頁面的訪問uri；
    stats realm   Haproxy\ Statistics # 統計頁面密碼驗證時的提示信息；
    stats auth    admin:admin # 為統計頁面開啟登錄驗證功能；
    stats admin if TRUE # 若登錄用戶驗證通過，則賦予管理功能；
frontend http-in
    bind *:80
    mode http
    log global
    option httpclose
    option logasap
    option dontlognull
    capture request  header Host len 20
    capture request  header Referer len 60
    acl url_static       path_beg       -i /static /p_w_picpaths /javascript /stylesheets
    acl url_static       path_end       -i .jpg .jpeg .gif .png .css .js .html
    use_backend static_servers if url_static # 符合ACL規則的，請求轉入后端靜態服務器
    default_backend dynamic_servers # 默認請求轉入后端動態服務器
backend static_servers
    balance roundrobin
    server imgsrv1 192.168.0.25:80 check maxconn 6000 # 靜態服務器，可配置多臺，還可設置權重weight；
backend dynamic_servers
    balance source # 對于動態請求利用source調度算法，可一定程度上實現session保持；但最好利用cookie綁定的方式實現session保持
    server websrv1 192.168.0.35:80 check maxconn 1000 # 動態服務器，可配置多臺，還可設置權重weight；

兩個節點執行啟動服務，命令如下：

$ service haproxy start

5、Nginx部署

yum -y groupinstall “Development tools”
yum -y groupinstall “Server Platform Development”
yum install gcc openssl-devel pcre-devel zlib-devel
groupadd -r nginx
useradd -r -g nginx -s /sbin/nologin -M nginx
tar xf nginx-1.4.7.tar.gz
cd nginx-1.4.7
mkdir -pv /var/tmp/nginx
./configure \

  --prefix=/usr \

  --sbin-path=/usr/sbin/nginx \

  --conf-path=/etc/nginx/nginx.conf \

  --error-log-path=/var/log/nginx/error.log \

  --http-log-path=/var/log/nginx/access.log \

  --pid-path=/var/run/nginx/nginx.pid  \

  --lock-path=/var/lock/nginx.lock \

  --user=nginx \

  --group=nginx \

  --with-http_ssl_module \

  --with-http_flv_module \

  --with-http_stub_status_module \

  --with-http_gzip_static_module \

  --http-client-body-temp-path=/var/tmp/nginx/client/ \

  --http-proxy-temp-path=/var/tmp/nginx/proxy/ \

  --http-fastcgi-temp-path=/var/tmp/nginx/fcgi/ \

  --http-uwsgi-temp-path=/var/tmp/nginx/uwsgi \

  --http-scgi-temp-path=/var/tmp/nginx/scgi \

  --with-pcre
make && make install

配置服務腳本

vi /etc/init.d/nginx # 配置服務腳本
#!/bin/sh
#
# nginx - this script starts and stops the nginx daemon
#
# chkconfig:   - 85 15
# description:  Nginx is an HTTP(S) server, HTTP(S) reverse \

#               proxy and IMAP/POP3 proxy server
# processname: nginx
# config:      /etc/nginx/nginx.conf
# config:      /etc/sysconfig/nginx
# pidfile:     /var/run/nginx.pid
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[ "$NETWORKING" = "no" ] && exit 0
nginx="/usr/sbin/nginx"
prog=$(basename $nginx)
NGINX_CONF_FILE="/etc/nginx/nginx.conf"
[ -f /etc/sysconfig/nginx ] && . /etc/sysconfig/nginx
lockfile=/var/lock/subsys/nginx
make_dirs() {
   # make required directories
   user=`nginx -V 2>&1 | grep "configure arguments:" | sed 's/[^*]*--user=\([^ ]*\).*/\1/g' -`
   options=`$nginx -V 2>&1 | grep 'configure arguments:'`
   for opt in $options; do
       if [ `echo $opt | grep '.*-temp-path'` ]; then
           value=`echo $opt | cut -d "=" -f 2`
           if [ ! -d "$value" ]; then
               # echo "creating" $value
               mkdir -p $value && chown -R $user $value
           fi
       fi
   done
}
start() {
    [ -x $nginx ] || exit 5
    [ -f $NGINX_CONF_FILE ] || exit 6
    make_dirs
    echo -n $"Starting $prog: "
    daemon $nginx -c $NGINX_CONF_FILE
    retval=$?
    echo
    [ $retval -eq 0 ] && touch $lockfile
    return $retval
}
stop() {
    echo -n $"Stopping $prog: "
    killproc $prog -QUIT
    retval=$?
    echo
    [ $retval -eq 0 ] && rm -f $lockfile
    return $retval
}
restart() {
    configtest || return $?
    stop
    sleep 1
    start
}
reload() {
    configtest || return $?
    echo -n $"Reloading $prog: "
    killproc $nginx -HUP
    RETVAL=$?
    echo
}
force_reload() {
    restart
}
configtest() {
  $nginx -t -c $NGINX_CONF_FILE
}
rh_status() {
    status $prog
}
rh_status_q() {
    rh_status >/dev/null 2>&1
}
case "$1" in
    start)
        rh_status_q && exit 0
        $1
        ;;
    stop)
        rh_status_q || exit 0
        $1
        ;;
    restart|configtest)
        $1
        ;;
    reload)
        rh_status_q || exit 7
        $1
        ;;
    force-reload)
        force_reload
        ;;
    status)
        rh_status
        ;;
    condrestart|try-restart)
        rh_status_q || exit 0
            ;;
    *)
        echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"
        exit 2
esac
chmod +x /etc/init.d/nginx # 復***務腳本執行權限
vi /etc/nginx/nginx.conf # 編輯主配置文件
worker_processes  2;
error_log  /var/log/nginx/nginx.error.log;
pid        /var/run/nginx.pid;
events {
    worker_connections  1024;
}
http {
    include       mime.types;
    default_type  application/octet-stream;
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';
    sendfile        on;
    keepalive_timeout  65;
    server {
        listen       80;
        server_name  xxrenzhe.lnmmp.com;
        access_log  /var/log/nginx/nginx.access.log  main;
        location / {
            root   /www/lnmmp.com;
            index  index.php index.html index.htm;
        }
        error_page  404              /404.html;
        error_page  500 502 503 504  /50x.html;
        location = /50x.html {
            root   /www/lnmmp.com;
        }
        location ~ \.php$ {
            root           /www/lnmmp.com;
            fastcgi_pass   127.0.0.1:9000;
            fastcgi_index  index.php;
            fastcgi_param  SCRIPT_FILENAME  $document_root$fastcgi_script_name;
            include        fastcgi_params;
        }
    }
}
vi /etc/nginx/fastcgi_params # 編輯fastcgi參數文件
fastcgi_param  GATEWAY_INTERFACE  CGI/1.1;
fastcgi_param  SERVER_SOFTWARE    nginx;
fastcgi_param  QUERY_STRING       $query_string;
fastcgi_param  REQUEST_METHOD     $request_method;
fastcgi_param  CONTENT_TYPE       $content_type;
fastcgi_param  CONTENT_LENGTH     $content_length;
fastcgi_param  SCRIPT_FILENAME    $document_root$fastcgi_script_name;
fastcgi_param  SCRIPT_NAME        $fastcgi_script_name;
fastcgi_param  REQUEST_URI        $request_uri;
fastcgi_param  DOCUMENT_URI       $document_uri;
fastcgi_param  DOCUMENT_ROOT      $document_root;
fastcgi_param  SERVER_PROTOCOL    $server_protocol;
fastcgi_param  REMOTE_ADDR        $remote_addr;
fastcgi_param  REMOTE_PORT        $remote_port;
fastcgi_param  SERVER_ADDR        $server_addr;
fastcgi_param  SERVER_PORT        $server_port;
fastcgi_param  SERVER_NAME        $server_name;

啟動服務

service nginx configtest # 服務啟動前先驗證配置文件是否正確
service nginx start
ps -ef |grep nginx # 檢查nginx進程，尤其是worker進程是否與worker_processes值一致
ss -antupl |grep 80 # 檢查服務端口是否啟動

6、訪問驗證

Haproxy 統計頁面測試

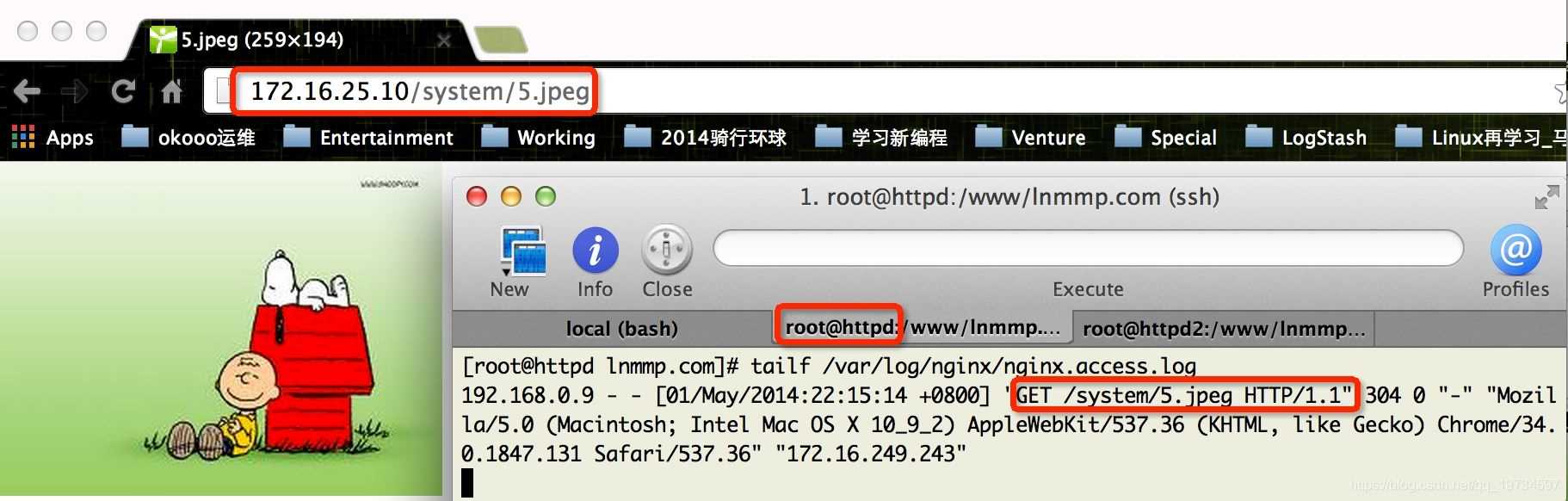

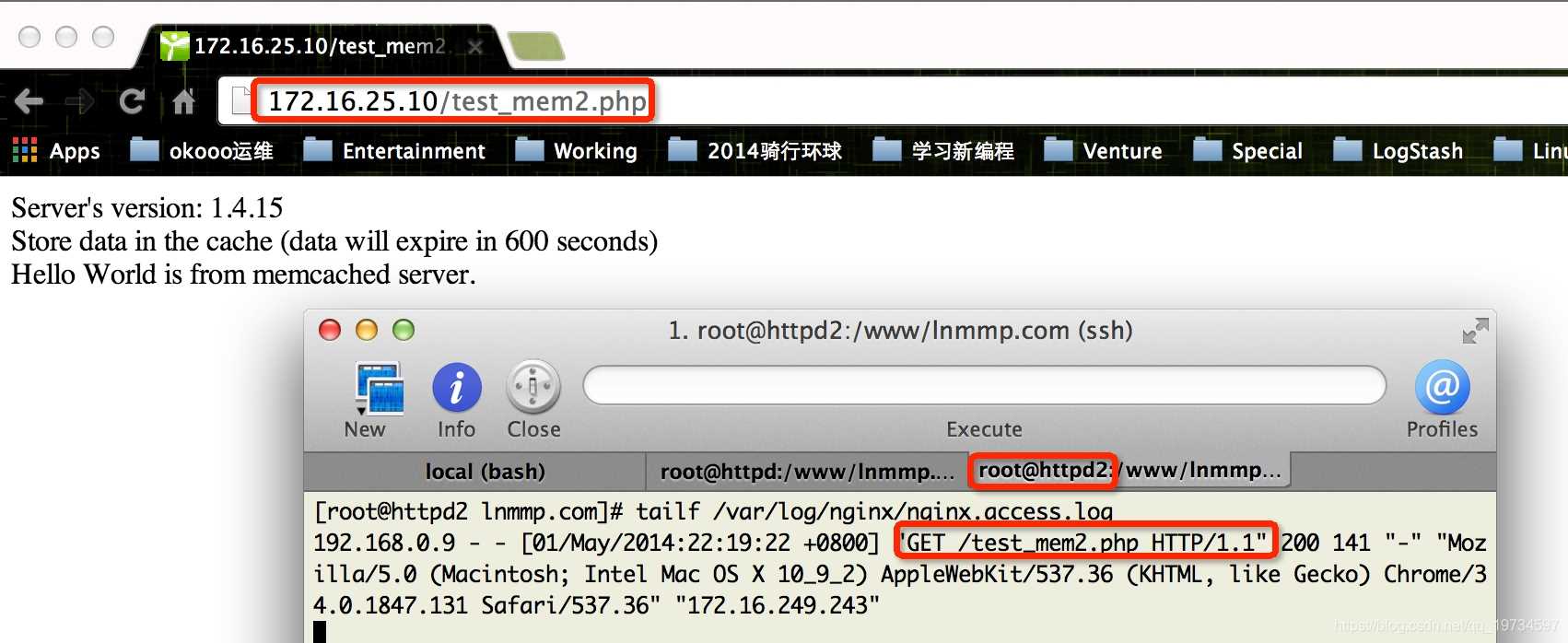

動靜分離測試

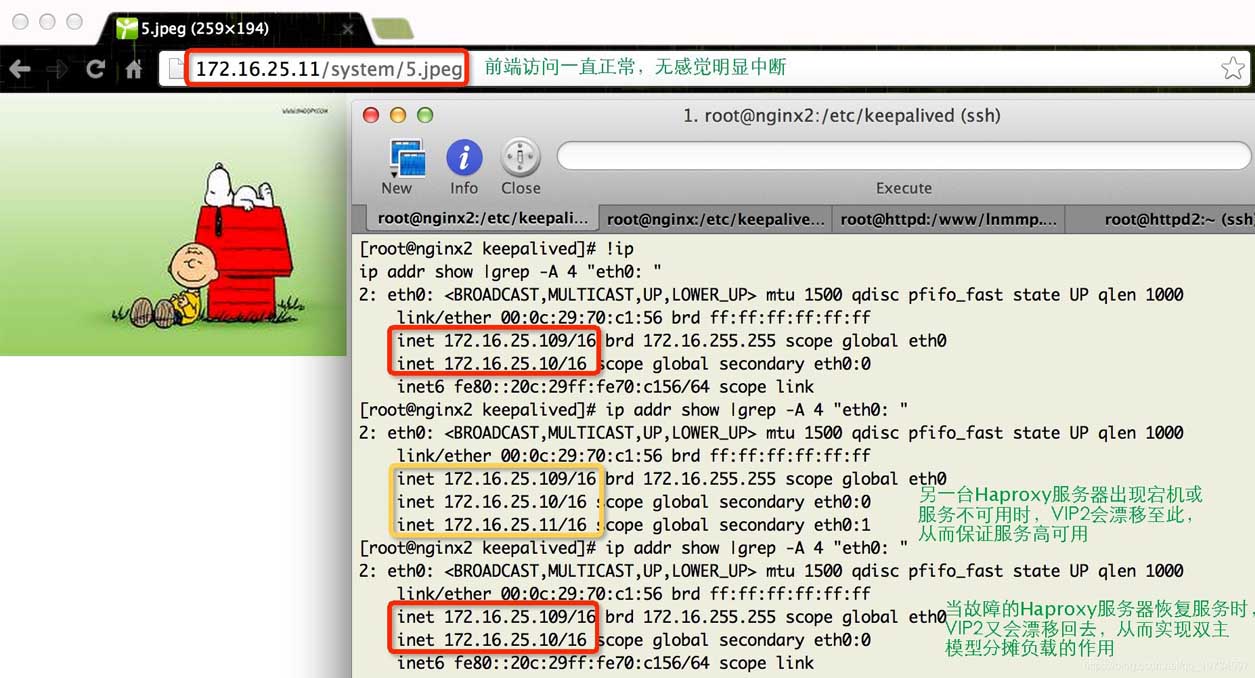

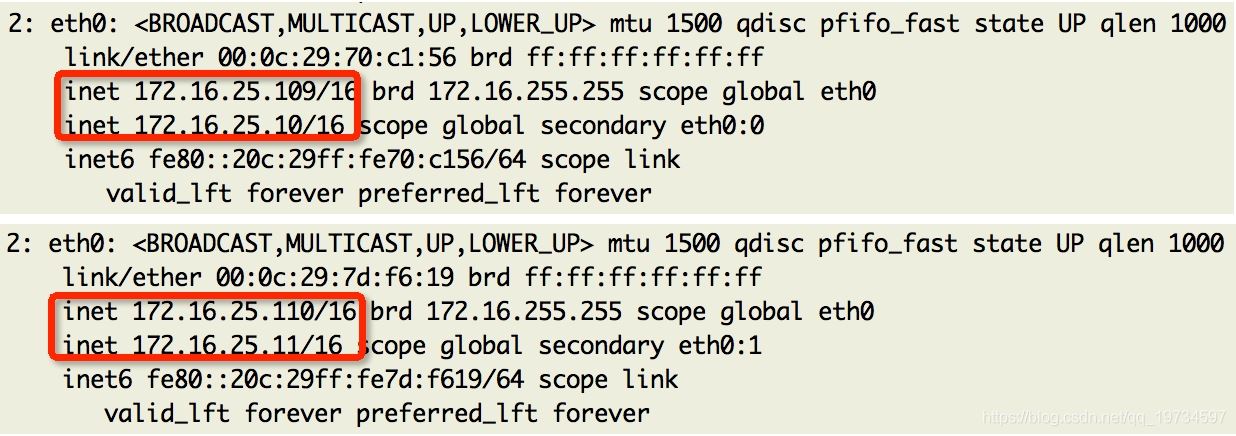

高可用測試

到此 Nginx高可用集群構建（Keepalived+Haproxy+Nginx）介紹完成。

到此這篇關于Nginx實現高可用集群構建(Keepalived+Haproxy+Nginx)的文章就介紹到這了,更多相關Nginx 高可用集群內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

標簽：朝陽荊門運城面試通知隴南遵義雞西連云港

巨人網絡通訊聲明：本文標題《Nginx實現高可用集群構建(Keepalived+Haproxy+Nginx)》，本文關鍵詞 Nginx,實現,高可用,高,可用,；如發現本文內容存在版權問題，煩請?zhí)峁┫嚓P(guān)信息告之我們，我們將及時溝通與處理。本站內容系統采集于網絡，涉及言論、版權與本站無關。
