前言

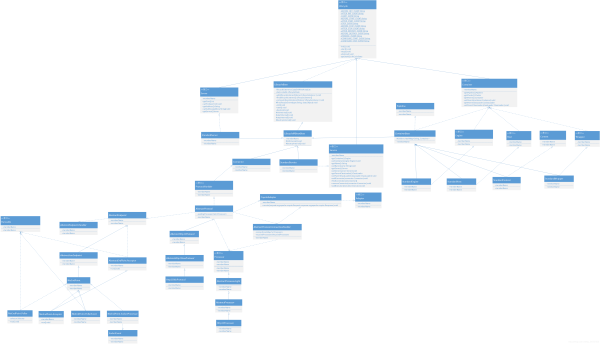

Tomcat最全UML類圖

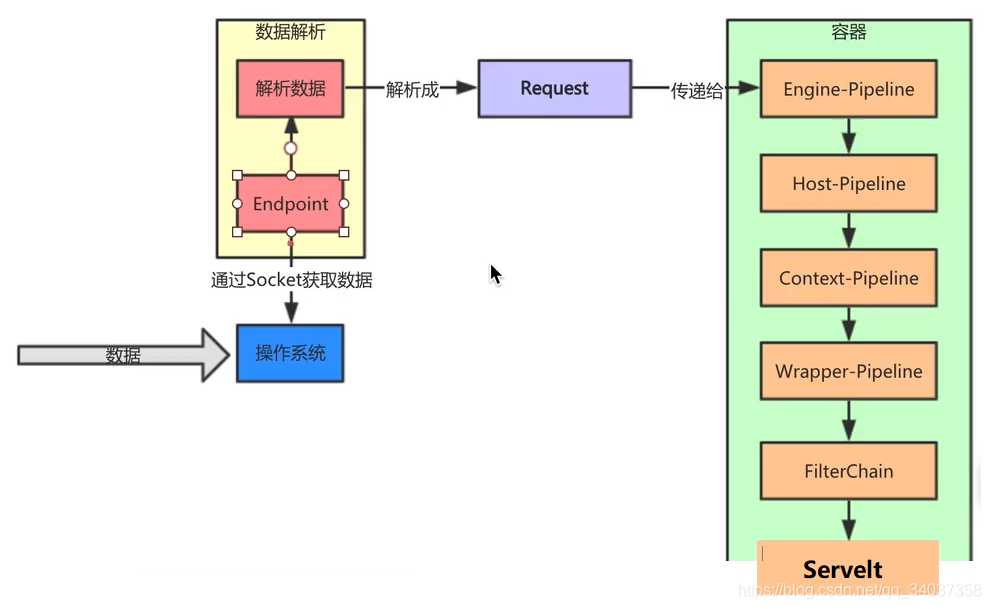

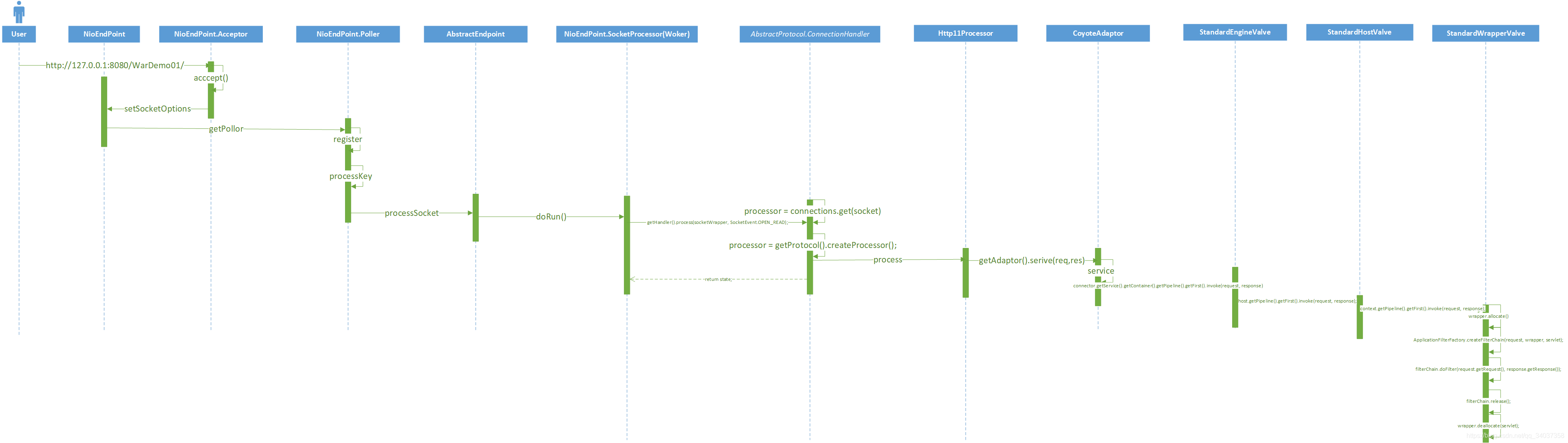

Tomcat請求處理過程：
Connector對象創建的時候，會創建Http11NioProtocol的ProtocolHandler，在Connector的startInteral方法中，會啟動AbstractProtocol，AbstractProtocol啟動NioEndPoint進行監聽客戶端的請求，EndPoint接受到客戶端的請求之后，會交給Container去處理請求。請求從Engine開始經過的所有容器都含有責任鏈模式，每經過一個容器都會調用該容器的責任鏈對請求進行處理。
一、EndPoint

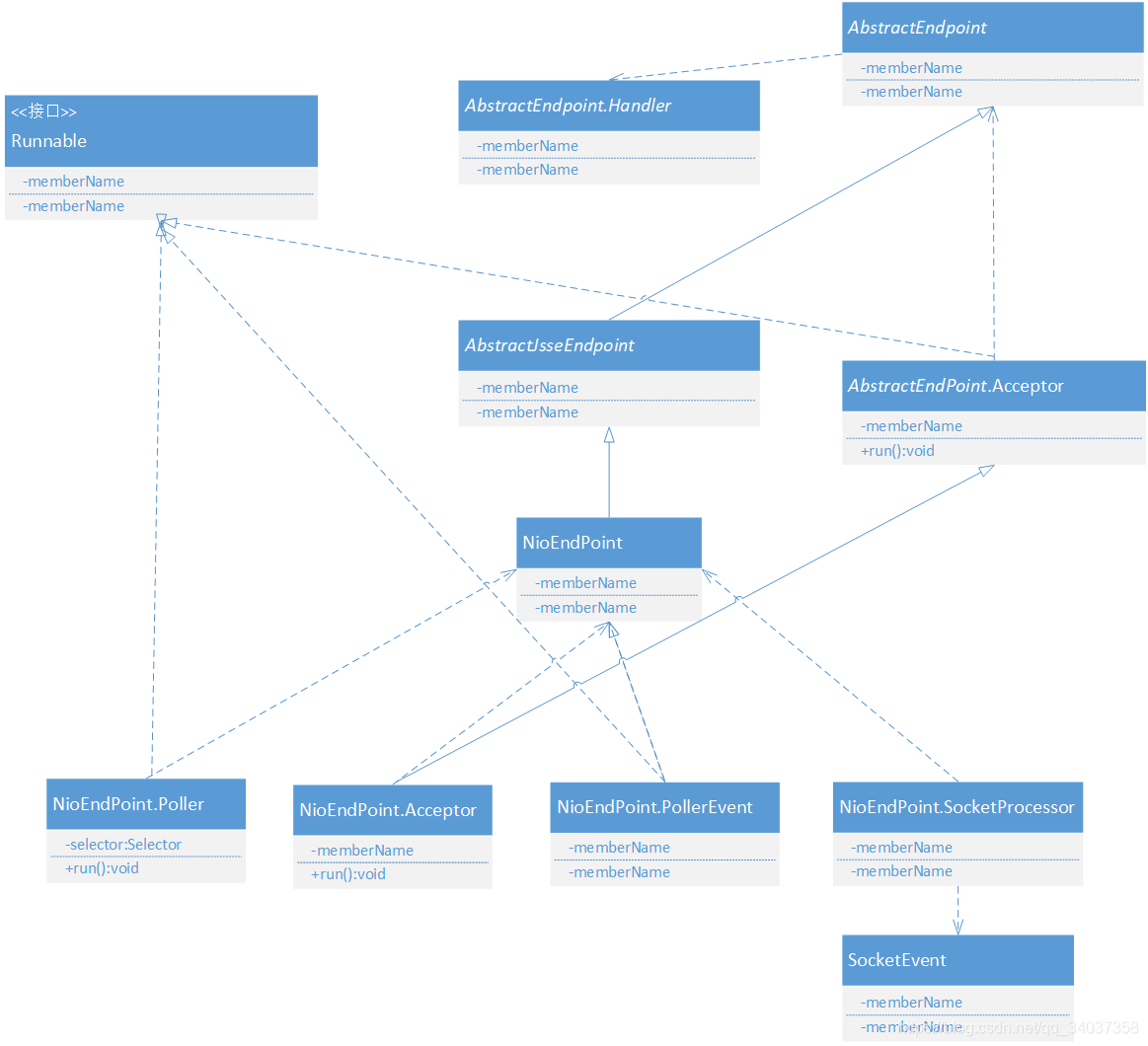

默認的EndPoint實現是NioEndPoint，NioEndPoint有四個內部類，分別是Poller、Acceptor、PollerEvent、SocketProcessor、NioSocketWrapper。
（1）Acceptor負責監聽用戶的請求，監聽到用戶請求之后，調用getPoller0().register(channel);先將當前請求封裝成PollerEvent，new PollerEvent(socket, ka, OP_REGISTER); 將當前請求，封裝成注冊事件，并添加到PollerEvent隊列中，然后將PollerEvent注冊到Poller的Selector對象上面。
（2）Poller線程會一直遍歷可以處理的事件（netty的selestor），當找到需要處理的事件之后，調用processKey(sk, socketWrapper);對，執行要處理的PollerEvent的run方法，對請求進行處理。
（3）PollerEvent繼承自Runnable接口，在其run方法里面,如果是PollerEvent的事件是注冊O(shè)P_REGISTER，那么就將當前的socket注冊到Poller的selector上。
public void run() {
if (interestOps == OP_REGISTER) {
try {
// 核心代碼，終于找到了?。。。?！
// 當事件是注冊的時候，將當前的NioSocketChannel注冊到Poller的Selector上。
socket.getIOChannel().register(
socket.getPoller().getSelector(), SelectionKey.OP_READ, socketWrapper);
} catch (Exception x) {
log.error(sm.getString("endpoint.nio.registerFail"), x);
}
} else {
final SelectionKey key = socket.getIOChannel().keyFor(socket.getPoller().getSelector());
try {
if (key == null) {
// The key was cancelled (e.g. due to socket closure)
// and removed from the selector while it was being
// processed. Count down the connections at this point
// since it won't have been counted down when the socket
// closed.
// SelectionKey被取消的時候需要將SelectionKey對應的EndPoint的Connection計數器，減一
socket.socketWrapper.getEndpoint().countDownConnection();
((NioSocketWrapper) socket.socketWrapper).closed = true;
} else {
final NioSocketWrapper socketWrapper = (NioSocketWrapper) key.attachment();
if (socketWrapper != null) {
//we are registering the key to start with, reset the fairness counter.
int ops = key.interestOps() | interestOps;
socketWrapper.interestOps(ops);
key.interestOps(ops);
} else {
socket.getPoller().cancelledKey(key);
}
}
} catch (CancelledKeyException ckx) {
try {
socket.getPoller().cancelledKey(key);
} catch (Exception ignore) {
}
}
}
}
（4）Poller線程內會執行keyCount = selector.select(selectorTimeout);獲取當前需要處理的SelectionKey的數量，然后當keyCount大于0時，會獲取selector的迭代器，遍歷所有需要的selectionkey，并對其進行處理。在這里將socket的事件封裝成NioSocketWrapper。
// 得到selectedKeys的迭代器
Iterator<SelectionKey> iterator =
keyCount > 0 ? selector.selectedKeys().iterator() : null;
// 遍歷所有的SelectionKey，并對其進行處理
while (iterator != null && iterator.hasNext()) {
SelectionKey sk = iterator.next();
iterator.remove();
NioSocketWrapper socketWrapper = (NioSocketWrapper) sk.attachment();
// Attachment may be null if another thread has called
// cancelledKey()
// 如果有attachment，就處理
if (socketWrapper != null) {
// 處理事件
processKey(sk, socketWrapper);
}
}
processKey在處理SelectionKey，如果當前Poller已經關閉，就取消key。SelectionKey對應的Channel如果發生讀事件，就調用AbatractEndPoint.processSocket執行讀操作processSocket(attachment, SocketEvent.OPEN_READ, true)，如果SelectionKey對應的Channel發生寫事件，就執行processSocket(attachment, SocketEvent.OPEN_WRITE, true);讀大于寫。socket的事件處理調用的是AbatractEndPoint的processSocket方法。
protected void processKey(SelectionKey sk, NioSocketWrapper attachment) {
try {
if (close) {
// 如果Poller已經關閉了，就取消key
cancelledKey(sk);
} else if (sk.isValid() && attachment != null) {
if (sk.isReadable() || sk.isWritable()) {
if (attachment.getSendfileData() != null) {
processSendfile(sk, attachment, false);
} else {
unreg(sk, attachment, sk.readyOps());
boolean closeSocket = false;
// Read goes before write
// 讀優于寫
// 如果SelectionKey對應的Channel已經準備好了讀
// 就對NioSocketWrapper進行讀操作
if (sk.isReadable()) {

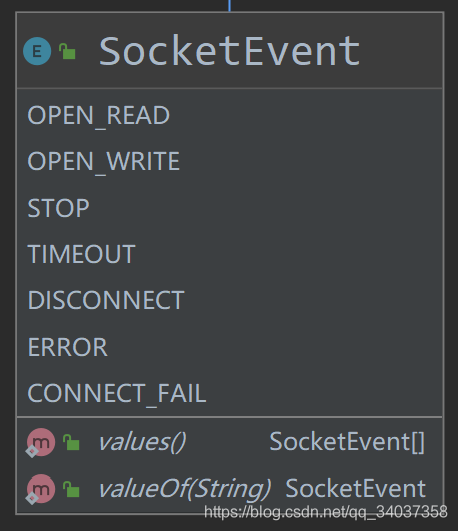

if (!processSocket(attachment, SocketEvent.OPEN_READ, true)) {
closeSocket = true;
}
}
// 如果SelectionKey對應的Channel已經準備好了寫
// 就對NioSocketWrapper進行寫操作
if (!closeSocket && sk.isWritable()) {
if (!processSocket(attachment, SocketEvent.OPEN_WRITE, true)) {
closeSocket = true;
}
}
if (closeSocket) {
// 如果已經關閉了，就取消key
cancelledKey(sk);
}
}
}
}
AbatractEndPoint.processSocket方法首先從緩存中獲取SocketProcessor類，如果緩存中沒有就創建一個，SocketProcessorBase接口對應的就是NioEndPoint.SocketProcessor，也就是Worker。將對應的SocketProcessor類放入到線程池中執行。
public boolean processSocket(SocketWrapperBase<S> socketWrapper,
SocketEvent event, boolean dispatch) {
// 得到socket的處理器
// Connector在構造函數里面已經指定了協議：org.apache.coyote.http11.Http11NioProtocol。
SocketProcessorBase<S> sc = processorCache.pop();
if (sc == null) {
// 如果沒有，就創建一個Socket的處理器。創建的時候指定socketWrapper以及socket的事件。
sc = createSocketProcessor(socketWrapper, event);
} else {
sc.reset(socketWrapper, event);
}
//socket的處理交給了線程池去處理。
Executor executor = getExecutor();
if (dispatch && executor != null) {
executor.execute(sc);
} else {
sc.run();
}
（5）NioEndPoint.NioSocketWrapper，是Socket的封裝類，增強類，將Socket與其他對象建立關聯。
public static class NioSocketWrapper extends SocketWrapperBase<NioChannel> {
private final NioSelectorPool pool;
private Poller poller = null; // 輪詢的Poller
private int interestOps = 0;
private CountDownLatch readLatch = null;
private CountDownLatch writeLatch = null;
private volatile SendfileData sendfileData = null;
private volatile long lastRead = System.currentTimeMillis();
private volatile long lastWrite = lastRead;
private volatile boolean closed = false;
（6）NioEndPoint.SocketProcessor（Worker）繼承了Runnable接口，負責對socket的g各種事件進行處理。讀事件、寫事件、停止時間、超時事件、斷連事件、錯誤時間、連接失敗事件。
SocketProcessor的doRun方法，會根據SocketState進行處理，SocketState 為STOP、DISCONNECT或者ERROR的時候就進行關閉，SocketWrapperBase對應的selector事件，得到指定的Handler處理器進行處理。
@Override
protected void doRun() {
NioChannel socket = socketWrapper.getSocket();
SelectionKey key = socket.getIOChannel().keyFor(socket.getPoller().getSelector());
try {
int handshake = -1;
try {
if (key != null) {
if (socket.isHandshakeComplete()) {
// 是否已經握手成功，不需要TLS(加密)握手，就讓處理器對socket和event的組合進行處理。
handshake = 0;
} else if (event == SocketEvent.STOP || event == SocketEvent.DISCONNECT ||
event == SocketEvent.ERROR) {
// 不能夠完成TLS握手，就把他認為是TLS握手失敗。
handshake = -1;
} else {
handshake = socket.handshake(key.isReadable(), key.isWritable());
// The handshake process reads/writes from/to the
// socket. status may therefore be OPEN_WRITE once
// the handshake completes. However, the handshake
// happens when the socket is opened so the status
// must always be OPEN_READ after it completes. It
// is OK to always set this as it is only used if
// the handshake completes.
// 握手從/向socket讀/寫時，握手一旦完成狀態應該為OPEN_WRITE，
// 握手是在套接字打開時發生的，因此在完成后狀態必須始終為OPEN_READ
// 始終設置此選項是可以的，因?yàn)樗鼉H在握手完成時使用。
event = SocketEvent.OPEN_READ;
}
}
} catch (IOException x) {
handshake = -1;
if (log.isDebugEnabled()) log.debug("Error during SSL handshake", x);
} catch (CancelledKeyException ckx) {
handshake = -1;
}
if (handshake == 0) {
SocketState state = SocketState.OPEN;
// Process the request from this socket
if (event == null) {
// 調用處理器進行處理。
// NioEndPoint的默認Handler是Http11的
// 這里的Handler是AbstractProtocol.ConnectionHandler
// 這個Handler的設置方法是：
// 首先在Connector類的構造函數中，將默認的ProtocolHandler設置為org.apache.coyote.http11.Http11NioProtocol
// AbstractHttp11Protocol的構造函數里面創建了Handler類ConnectionHandler
state = getHandler().process(socketWrapper, SocketEvent.OPEN_READ);
} else {
state = getHandler().process(socketWrapper, event);
}
// 如果返回的狀態是SocketState，那么就關掉連接
if (state == SocketState.CLOSED) {
close(socket, key);
}
} else if (handshake == -1) {
getHandler().process(socketWrapper, SocketEvent.CONNECT_FAIL);
close(socket, key);
} else if (handshake == SelectionKey.OP_READ) {
// 如果是SelectionKey.OP_READ，也就是讀事件的話，就將OP_READ時間設置到socketWrapper
socketWrapper.registerReadInterest();
} else if (handshake == SelectionKey.OP_WRITE) {
// 如果是SelectionKey.OP_WRITE，也就是讀事件的話，就將OP_WRITE事件設置到socketWrapper
socketWrapper.registerWriteInterest();
}
二、ConnectionHandler
（1）ConnectionHandler用于根據Socket連接找到相應的Engine處理器。
上面是SocketProcessor的doRun方法，執行了getHandler().process(socketWrapper, SocketEvent.OPEN_READ);;process方法是首先在Map緩存中查找當前socket是否存在對應的processor，如果不存在，再去可循環的處理器棧中查找是否存在，如果不存在就創建相應的Processor，然后將新創建的Processor與Socket建立映射，存在connection的Map中。在任何一個階段得到Processor對象之后，會執行processor的process方法state = processor.process(wrapper, status);
protected static class ConnectionHandler<S> implements AbstractEndpoint.Handler<S> {
private final AbstractProtocol<S> proto;
private final RequestGroupInfo global = new RequestGroupInfo();
private final AtomicLong registerCount = new AtomicLong(0);
// 終于找到了這個集合，給Socket和處理器建立連接
// 對每個有效鏈接都會緩存進這里，用于連接選擇一個合適的Processor實現以進行請求處理。
private final Map<S, Processor> connections = new ConcurrentHashMap<>();
// 可循環的處理器棧
private final RecycledProcessors recycledProcessors = new RecycledProcessors(this);
@Override
public SocketState process(SocketWrapperBase<S> wrapper, SocketEvent status) {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.process",
wrapper.getSocket(), status));
}
if (wrapper == null) {
// wrapper == null 表示Socket已經被關閉了，所以不需要做任何操作。
return SocketState.CLOSED;
}
// 得到wrapper內的Socket對象
S socket = wrapper.getSocket();
// 從Map緩沖區中得到socket對應的處理器。
Processor processor = connections.get(socket);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.connectionsGet",
processor, socket));
}
// Timeouts are calculated on a dedicated thread and then
// dispatched. Because of delays in the dispatch process, the
// timeout may no longer be required. Check here and avoid
// unnecessary processing.
// 超時是在專用線程上計算的，然后被調度。
// 因?yàn)檎{(diào)度過程中的延遲，可能不再需要超時。檢查這里，避免不必要的處理。
if (SocketEvent.TIMEOUT == status &&
(processor == null ||
!processor.isAsync() && !processor.isUpgrade() ||
processor.isAsync() && !processor.checkAsyncTimeoutGeneration())) {
// This is effectively a NO-OP
return SocketState.OPEN;
}
// 如果Map緩存存在該socket相關的處理器
if (processor != null) {
// Make sure an async timeout doesn't fire
// 確保沒有觸發異步超時
getProtocol().removeWaitingProcessor(processor);
} else if (status == SocketEvent.DISCONNECT || status == SocketEvent.ERROR) {
// Nothing to do. Endpoint requested a close and there is no
// longer a processor associated with this socket.
// SocketEvent事件是關閉，或者SocketEvent時間出錯，此時不需要做任何操作。
// Endpoint需要一個CLOSED的信號，并且這里不再有與這個socket有關聯了
return SocketState.CLOSED;
}
ContainerThreadMarker.set();
try {
// Map緩存不存在該socket相關的處理器
if (processor == null) {
String negotiatedProtocol = wrapper.getNegotiatedProtocol();
// OpenSSL typically returns null whereas JSSE typically
// returns "" when no protocol is negotiated
// OpenSSL通常返回null，而JSSE通常在沒有協議協商時返回""
if (negotiatedProtocol != null && negotiatedProtocol.length() > 0) {
// 獲取協商協議
UpgradeProtocol upgradeProtocol = getProtocol().getNegotiatedProtocol(negotiatedProtocol);
if (upgradeProtocol != null) {
// 升級協議為空
processor = upgradeProtocol.getProcessor(wrapper, getProtocol().getAdapter());
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorCreate", processor));
}
} else if (negotiatedProtocol.equals("http/1.1")) {
// Explicitly negotiated the default protocol.
// Obtain a processor below.
} else {
// TODO:
// OpenSSL 1.0.2's ALPN callback doesn't support
// failing the handshake with an error if no
// protocol can be negotiated. Therefore, we need to
// fail the connection here. Once this is fixed,
// replace the code below with the commented out
// block.
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.negotiatedProcessor.fail",
negotiatedProtocol));
}
return SocketState.CLOSED;
/*
* To replace the code above once OpenSSL 1.1.0 is
* used.
// Failed to create processor. This is a bug.
throw new IllegalStateException(sm.getString(
"abstractConnectionHandler.negotiatedProcessor.fail",
negotiatedProtocol));
*/
}
}
}
// 經過上面的操作，processor還是null的話。
if (processor == null) {
// 從recycledProcessors可循環processors中獲取processor
processor = recycledProcessors.pop();
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorPop", processor));
}
}
if (processor == null) {
// 創建處理器
processor = getProtocol().createProcessor();
register(processor);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorCreate", processor));
}
}
processor.setSslSupport(
wrapper.getSslSupport(getProtocol().getClientCertProvider()));
// 將socket和processor建立關聯。
connections.put(socket, processor);
SocketState state = SocketState.CLOSED;
do {
// 調用processor的process方法。
state = processor.process(wrapper, status);
// processor的process方法返回升級狀態
if (state == SocketState.UPGRADING) {
// Get the HTTP upgrade handler
// 得到HTTP的升級句柄
UpgradeToken upgradeToken = processor.getUpgradeToken();
// Retrieve leftover input
// 檢索剩余輸入
ByteBuffer leftOverInput = processor.getLeftoverInput();
if (upgradeToken == null) {
// Assume direct HTTP/2 connection
UpgradeProtocol upgradeProtocol = getProtocol().getUpgradeProtocol("h2c");
if (upgradeProtocol != null) {
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = upgradeProtocol.getProcessor(wrapper, getProtocol().getAdapter());
wrapper.unRead(leftOverInput);
// Associate with the processor with the connection
connections.put(socket, processor);
} else {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString(
"abstractConnectionHandler.negotiatedProcessor.fail",
"h2c"));
}
// Exit loop and trigger appropriate clean-up
state = SocketState.CLOSED;
}
} else {
HttpUpgradeHandler httpUpgradeHandler = upgradeToken.getHttpUpgradeHandler();
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = getProtocol().createUpgradeProcessor(wrapper, upgradeToken);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.upgradeCreate",
processor, wrapper));
}
wrapper.unRead(leftOverInput);
// Associate with the processor with the connection
connections.put(socket, processor);
// Initialise the upgrade handler (which may trigger
// some IO using the new protocol which is why the lines
// above are necessary)
// This cast should be safe. If it fails the error
// handling for the surrounding try/catch will deal with
// it.
if (upgradeToken.getInstanceManager() == null) {
httpUpgradeHandler.init((WebConnection) processor);
} else {
ClassLoader oldCL = upgradeToken.getContextBind().bind(false, null);
try {
httpUpgradeHandler.init((WebConnection) processor);
} finally {
upgradeToken.getContextBind().unbind(false, oldCL);
}
}
}
}
} while (state == SocketState.UPGRADING);
（2）以Http11協議為例，執行的是Http11Processor，Http11Processor的祖父類AbstractProcessorLight實現了process方法，process調用了service模板方法，service模板方法是由Http11Processor進行實現的。service方法最重要的操作是執行getAdapter().service(request, response);
@Override
public SocketState service(SocketWrapperBase<?> socketWrapper)
throws IOException {
// 上面省略n行
// 調用Coyote的service方法
getAdapter().service(request, response);
// 下面省略n行
三、Coyote
回顧一下CoyoteAdapter的創建是在Connector的initInternal方法。
@Override
public SocketState service(SocketWrapperBase<?> socketWrapper)
throws IOException {
// 上面省略n行
// 調用Coyote的service方法
getAdapter().service(request, response);
// 下面省略n行
Coyote的作用就是coyote.Request和coyote.Rsponse轉成HttpServletRequest和HttpServletRsponse。然后，因?yàn)镃onnector在init的時候，將自己注入到了CoyoteAdapter中，所以，直接通過connector.getService()方法就可以拿到Service，然后從Service開始調用責任鏈模式，進行處理。
@Override
public SocketState service(SocketWrapperBase<?> socketWrapper)
throws IOException {
// 上面省略n行
// 調用Coyote的service方法
getAdapter().service(request, response);
// 下面省略n行
四、容器責任鏈模式
接下來就是從StandradEngine開始的責任鏈模式。首先執行StandradEngine的責任鏈模式，找到合適的Engine，合適的Engine在通過責任鏈模式找到合適的Context，直到找到StandardWrapperValve。最后執行到StandardWrapperValve的invoke方法。首先查看Context和Wrapper是不是不可用了，如果可用，并且Servelt還沒有被初始化，就執行初始化操作。如果是單線程模式就直接返回之前創建好的Servelt，如果是多線程模式，就先創建一個Servelt對象進行返回。
@Override
public final void invoke(Request request, Response response)
throws IOException, ServletException {
// 初始化我們需要的本地變量
boolean unavailable = false;
Throwable throwable = null;
// This should be a Request attribute...
long t1 = System.currentTimeMillis();
// 原子類AtomicInteger，CAS操作，表示請求的數量。
requestCount.incrementAndGet();
StandardWrapper wrapper = (StandardWrapper) getContainer();
Servlet servlet = null;
Context context = (Context) wrapper.getParent();
// 檢查當前的Context應用是否已經被標注為不可以使用
if (!context.getState().isAvailable()) {
// 如果當前應用不可以使用的話，就報503錯誤。
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardContext.isUnavailable"));
unavailable = true;
}
// 檢查Servelt是否被標記為不可使用
if (!unavailable && wrapper.isUnavailable()) {
container.getLogger().info(sm.getString("standardWrapper.isUnavailable",
wrapper.getName()));
long available = wrapper.getAvailable();
if ((available > 0L) && (available < Long.MAX_VALUE)) {
response.setDateHeader("Retry-After", available);
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardWrapper.isUnavailable",
wrapper.getName()));
} else if (available == Long.MAX_VALUE) {
response.sendError(HttpServletResponse.SC_NOT_FOUND,
sm.getString("standardWrapper.notFound",
wrapper.getName()));
}
unavailable = true;
}
// Servelt是第一次調用的時候初始化
try {
if (!unavailable) {
// 如果此時Servelt還沒有被初始化，就分配一個Servelt實例來處理request請求。
servlet = wrapper.allocate();
}
/// 省略代碼..........................................
// // 給該request創建Filter過濾鏈。Filter過濾鏈執行完之后，會執行Servelt
ApplicationFilterChain filterChain =
ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);
// Call the filter chain for this request
// NOTE: This also calls the servlet's service() method
try {
if ((servlet != null) && (filterChain != null)) {
// Swallow output if needed
if (context.getSwallowOutput()) {
try {
SystemLogHandler.startCapture();
if (request.isAsyncDispatching()) {
request.getAsyncContextInternal().doInternalDispatch();
} else {
// 調用過濾鏈
filterChain.doFilter(request.getRequest(),
response.getResponse());
}
/// 省略代碼..........................................
到此這篇關于Tomcat源碼解析之Web請求與處理的文章就介紹到這了,更多相關Tomcat的Web請求與處理內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
