技術背景
Latex在文檔撰寫方面是不可或缺的工具，尤其是在寫文章方面，是必須要用到的文字排版工具。但是latex的環境部署并不是一個特別人性化的操作，尤其是在各種不同的平臺上操作是完全不一樣的，還經常容易報錯。我們可以一個一個的去解決報錯問題，但是這需要耗費極大的精力和時間，所以很多人選擇了直接在overleaf進行l(wèi)atex的創作。但其實overleaf也有它的缺點，比如免費版本的帶寬和速度都比較受限，尤其是在國內的網絡，訪問速度可謂是”一絕“。因此這里我們介紹一個更加人性化的方案，而且對各大平臺的兼容性非常都非常好：使用docker來部署latex環境。
Docker的基本操作
在各大平臺的官方源里面應該都會有提供docker容器，因此這里我們也不過多的贅述。作者過去寫過一篇關于使用docker來部署MindSpore開發環境的博客，感興趣的讀者可以當作是拓展文章來閱讀一下。
首先我們?cè)贛anjaro Linux平臺上啟動docker（在其他平臺上的操作可能有區別，比如service start docker等）：
[dechin-root tex]# systemctl start docker
注意上述指令要在root帳號下才能夠啟動，如果要選擇在非root帳號下操作，docker容器是不支持的，但是我們可以選擇singularity這一類似的容器解決方案，相關內容可以參考這篇博客。啟動服務之后，正常狀態下我們可以看到docker的status是處于active或者running的狀態：
[dechin-root tex]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; disabled; vendor preset: disab>
Active: active (running) since Sun 2021-03-28 18:50:47 CST; 7s ago
TriggeredBy: ● docker.socket
Docs: https://docs.docker.com
Main PID: 25366 (dockerd)
Tasks: 123 (limit: 47875)
Memory: 219.1M
CGroup: /system.slice/docker.service
├─25366 /usr/bin/dockerd -H fd://
└─25378 containerd --config /var/run/docker/containerd/containerd.toml --log-l>
拉取容器鏡像

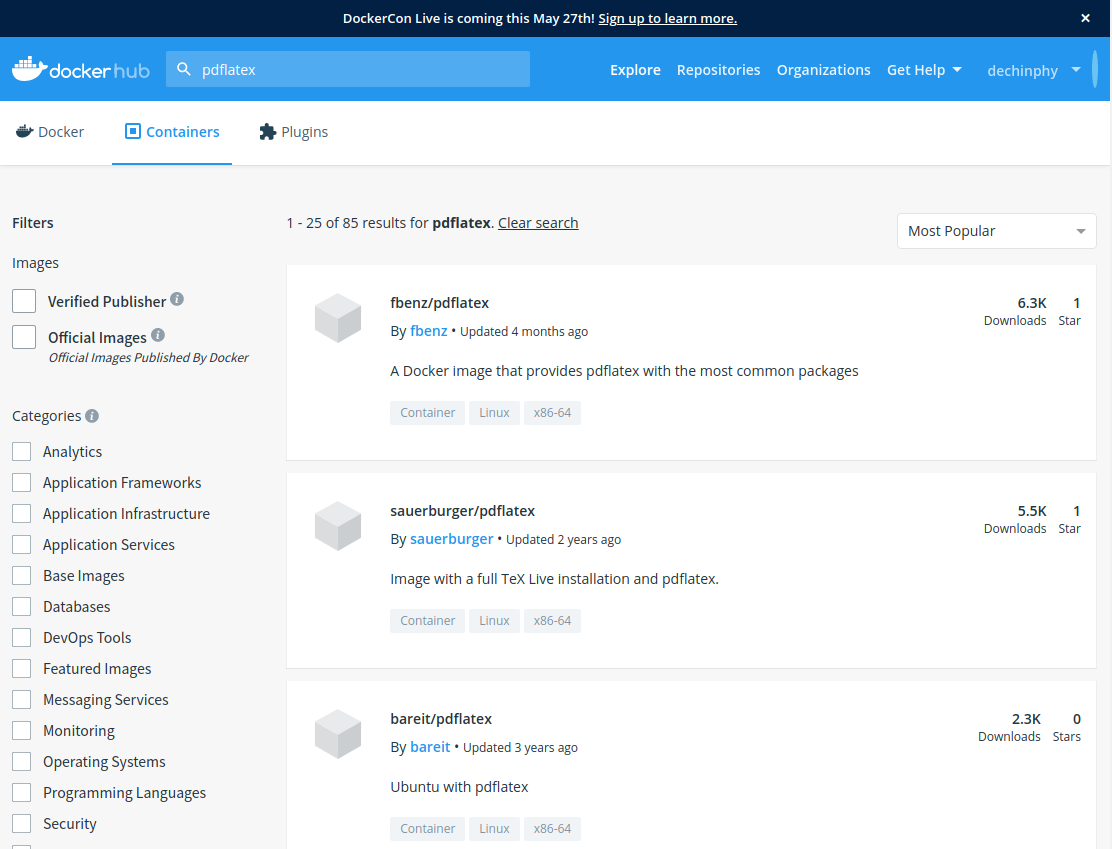

首先我們可以訪問dockerhub官網搜索一下是否存在我們所需要的容器鏡像，比如我們的搜索結果如下：
可以看到這里有很多的選項，一般我們可以直接選擇星星最高的容器鏡像進行下載使用：
[dechin-root tex]# docker pull fbenz/pdflatex
Using default tag: latest
latest: Pulling from fbenz/pdflatex
f22ccc0b8772: Already exists
3cf8fb62ba5f: Already exists
e80c964ece6a: Already exists
9aa2583757a3: Pull complete
2c3d7890d583: Pull complete
Digest: sha256:6ecca11b1a203faed5c0a2ace2a13aac100dd19d7a4e0db0474283bcded3c041
Status: Downloaded newer image for fbenz/pdflatex:latest
docker.io/fbenz/pdflatex:latest
下載需要一段的時間。下載完成后，可以在本地鏡像倉庫中找到剛才下載的這個鏡像文件：
[dechin-root tex]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
fbenz/pdflatex latest 8e7742722956 3 months ago 24GB
我們可以測試一下這個容器鏡像中的pdflatex功能是否正常：
[dechin-root tex]# docker run -it fbenz/pdflatex pdflatex --help
Usage: pdftex [OPTION]... [TEXNAME[.tex]] [COMMANDS]
or: pdftex [OPTION]... \FIRST-LINE
or: pdftex [OPTION]... &FMT ARGS
Run pdfTeX on TEXNAME, usually creating TEXNAME.pdf.
Any remaining COMMANDS are processed as pdfTeX input, after TEXNAME is read.
If the first line of TEXNAME is %&FMT, and FMT is an existing .fmt file,
use it. Else use `NAME.fmt', where NAME is the program invocation name,
most commonly `pdftex'.
Alternatively, if the first non-option argument begins with a backslash,
interpret all non-option arguments as a line of pdfTeX input.
Alternatively, if the first non-option argument begins with a &, the
next word is taken as the FMT to read, overriding all else. Any
remaining arguments are processed as above.
If no arguments or options are specified, prompt for input.
-draftmode switch on draft mode (generates no output PDF)
-enc enable encTeX extensions such as \mubyte
-etex enable e-TeX extensions
[-no]-file-line-error disable/enable file:line:error style messages
-fmt=FMTNAME use FMTNAME instead of program name or a %& line
-halt-on-error stop processing at the first error
-ini be pdfinitex, for dumping formats; this is implicitly
true if the program name is `pdfinitex'
-interaction=STRING set interaction mode (STRING=batchmode/nonstopmode/
scrollmode/errorstopmode)
-ipc send DVI output to a socket as well as the usual
output file
-ipc-start as -ipc, and also start the server at the other end
-jobname=STRING set the job name to STRING
-kpathsea-debug=NUMBER set path searching debugging flags according to
the bits of NUMBER
[-no]-mktex=FMT disable/enable mktexFMT generation (FMT=tex/tfm/pk)
-mltex enable MLTeX extensions such as \charsubdef
-output-comment=STRING use STRING for DVI file comment instead of date
(no effect for PDF)
-output-directory=DIR use existing DIR as the directory to write files in
-output-format=FORMAT use FORMAT for job output; FORMAT is `dvi' or `pdf'
[-no]-parse-first-line disable/enable parsing of first line of input file
-progname=STRING set program (and fmt) name to STRING
-recorder enable filename recorder
[-no]-shell-escape disable/enable \write18{SHELL COMMAND}
-shell-restricted enable restricted \write18
-src-specials insert source specials into the DVI file
-src-specials=WHERE insert source specials in certain places of
the DVI file. WHERE is a comma-separated value
list: cr display hbox math par parend vbox
-synctex=NUMBER generate SyncTeX data for previewers according to
bits of NUMBER (`man synctex' for details)
-translate-file=TCXNAME use the TCX file TCXNAME
-8bit make all characters printable by default
-help display this help and exit
-version output version information and exit
pdfTeX home page: <http://pdftex.org>
Email bug reports to pdftex@tug.org.
當我們看到help指令運行成功時，就表明容器鏡像可以正常使用。使用容器還有一點需要注意的是，如果我們直接用docker run -it fbenz/pdflatex的話，沒有綁定本地的目錄，這樣是無法看到本地所撰寫的tex文件的。因此我們一般需要在運行的時候加上-v的選項來綁定本地的目錄，基本使用方法是：-v 本地目錄:容器目錄，注意需要使用絕對路徑，不能使用相對路徑。
編譯Tex文件
在上述章節中完成基于docker的pdflatex環境部署之后，我們可以開始撰寫一些簡單的tex文件用來測試一下環境。
Hello World
首先最簡單的我們測試一個hello world的案例，僅在pdf文檔中輸出一個Hello World!的字樣，具體tex代碼如下：
[dechin@dechin-manjaro tex]$ cat hello_world.tex
\documentclass{article}
\begin{document}
Hello world!
\end{document}
使用方法也不難，首先我們運行docker容器，注意需要綁定一個本地路徑，然后進入到容器內對應的目錄下：
[dechin-root tex]# docker run -it -v /home/dechin/projects/2021-python/tex/:/home/ fbenz/pdflatex
root@d7ed2229a244:/# ll
total 72
drwxr-xr-x 1 root root 4096 Mar 28 11:07 ./
drwxr-xr-x 1 root root 4096 Mar 28 11:07 ../
-rwxr-xr-x 1 root root 0 Mar 28 11:07 .dockerenv*
drwxr-xr-x 2 root root 4096 Nov 19 13:09 bin/
drwxr-xr-x 2 root root 4096 Apr 24 2018 boot/
drwxr-xr-x 5 root root 360 Mar 28 11:07 dev/
drwxr-xr-x 1 root root 4096 Mar 28 11:07 etc/
drwxr-xr-x 2 1000 1000 4096 Mar 28 04:43 home/
drwxr-xr-x 1 root root 4096 May 23 2017 lib/
drwxr-xr-x 2 root root 4096 Nov 19 13:09 lib64/
drwxr-xr-x 2 root root 4096 Nov 19 13:07 media/
drwxr-xr-x 2 root root 4096 Nov 19 13:07 mnt/
drwxr-xr-x 2 root root 4096 Nov 19 13:07 opt/
dr-xr-xr-x 323 root root 0 Mar 28 11:07 proc/
drwx------ 2 root root 4096 Nov 19 13:09 root/
drwxr-xr-x 1 root root 4096 Nov 25 22:25 run/
drwxr-xr-x 1 root root 4096 Nov 25 22:25 sbin/
drwxr-xr-x 2 root root 4096 Nov 19 13:07 srv/
dr-xr-xr-x 13 root root 0 Mar 28 11:07 sys/
drwxrwxrwt 1 root root 4096 Nov 28 18:34 tmp/
drwxr-xr-x 1 root root 4096 Nov 19 13:07 usr/
drwxr-xr-x 1 root root 4096 Nov 19 13:09 var/
root@d7ed2229a244:/# cd home/
root@d7ed2229a244:/home# ll
total 12
drwxr-xr-x 2 1000 1000 4096 Mar 28 04:43 ./
drwxr-xr-x 1 root root 4096 Mar 28 11:07 ../
-rw-r--r-- 1 1000 1000 69 Mar 28 04:43 hello_world.tex
我們看到在容器內的目錄下也能夠看到這個tex文件，說明路徑的綁定成功的執行了。運行指令很簡單，直接在docker容器內運行pdflatex your_file.tex即可：
root@d7ed2229a244:/home# pdflatex hello_world.tex
This is pdfTeX, Version 3.14159265-2.6-1.40.18 (TeX Live 2017/Debian) (preloaded format=pdflatex)
restricted \write18 enabled.
entering extended mode
(./hello_world.tex
LaTeX2e <2017-04-15>
Babel <3.18> and hyphenation patterns for 84 language(s) loaded.
(/usr/share/texlive/texmf-dist/tex/latex/base/article.cls
Document Class: article 2014/09/29 v1.4h Standard LaTeX document class
(/usr/share/texlive/texmf-dist/tex/latex/base/size10.clo))
No file hello_world.aux.
[1{/var/lib/texmf/fonts/map/pdftex/updmap/pdftex.map}] (./hello_world.aux) )</u
sr/share/texlive/texmf-dist/fonts/type1/public/amsfonts/cm/cmr10.pfb>
Output written on hello_world.pdf (1 page, 11916 bytes).
Transcript written on hello_world.log.
root@d7ed2229a244:/home# ll
total 32
drwxr-xr-x 2 1000 1000 4096 Mar 28 11:08 ./
drwxr-xr-x 1 root root 4096 Mar 28 11:07 ../
-rw-r--r-- 1 root root 8 Mar 28 11:08 hello_world.aux
-rw-r--r-- 1 root root 2408 Mar 28 11:08 hello_world.log
-rw-r--r-- 1 root root 11916 Mar 28 11:08 hello_world.pdf
-rw-r--r-- 1 1000 1000 69 Mar 28 04:43 hello_world.tex
root@d7ed2229a244:/home# chmod -R 777 .
root@d7ed2229a244:/home# ll
total 32
drwxrwxrwx 2 1000 1000 4096 Mar 28 11:08 ./
drwxr-xr-x 1 root root 4096 Mar 28 11:07 ../
-rwxrwxrwx 1 root root 8 Mar 28 11:08 hello_world.aux*
-rwxrwxrwx 1 root root 2408 Mar 28 11:08 hello_world.log*
-rwxrwxrwx 1 root root 11916 Mar 28 11:08 hello_world.pdf*
-rwxrwxrwx 1 1000 1000 69 Mar 28 04:43 hello_world.tex*
運行完成后我們?cè)谀夸浿锌吹搅藥讉€(gè)新生成的文件，如果用root改成777的權限，那么在本地的非root帳號就可以對其進行編輯，否則就只能查看。我們可以在本地打開這個pdf文件看看：
可以看到這個pdf文件生成成功。
測試公式
上面hello world的案例比較簡單，讓我們來測試一下最常用的數學公式是否有問題：
[dechin@dechin-manjaro tex]$ cat equation_test.tex
\documentclass{article}
\begin{document}
Hello world!
\begin{equation}
e^{iHt}\left|\psi\right>
\end{equation}
\end{document}

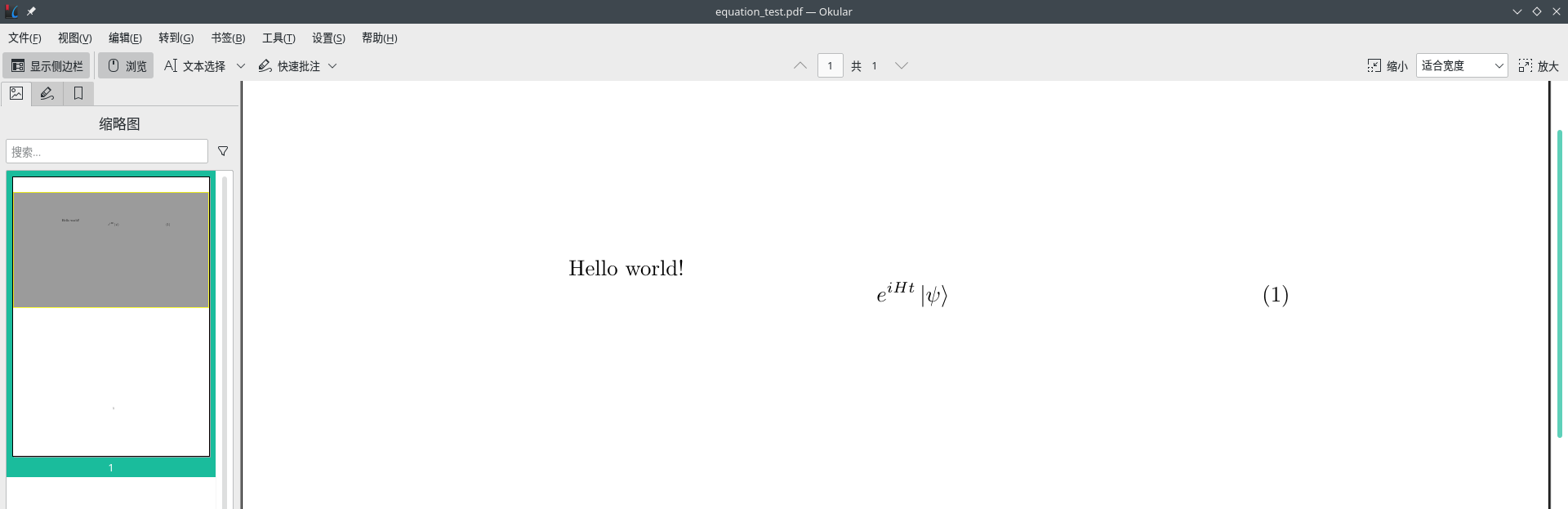

類似于上一章節的，我們也需要進入到容器的內部執行相關的指令，最后獲得如下所示的一個pdf文件：
我們可以看到公式顯示也是正常的。
量子線路圖

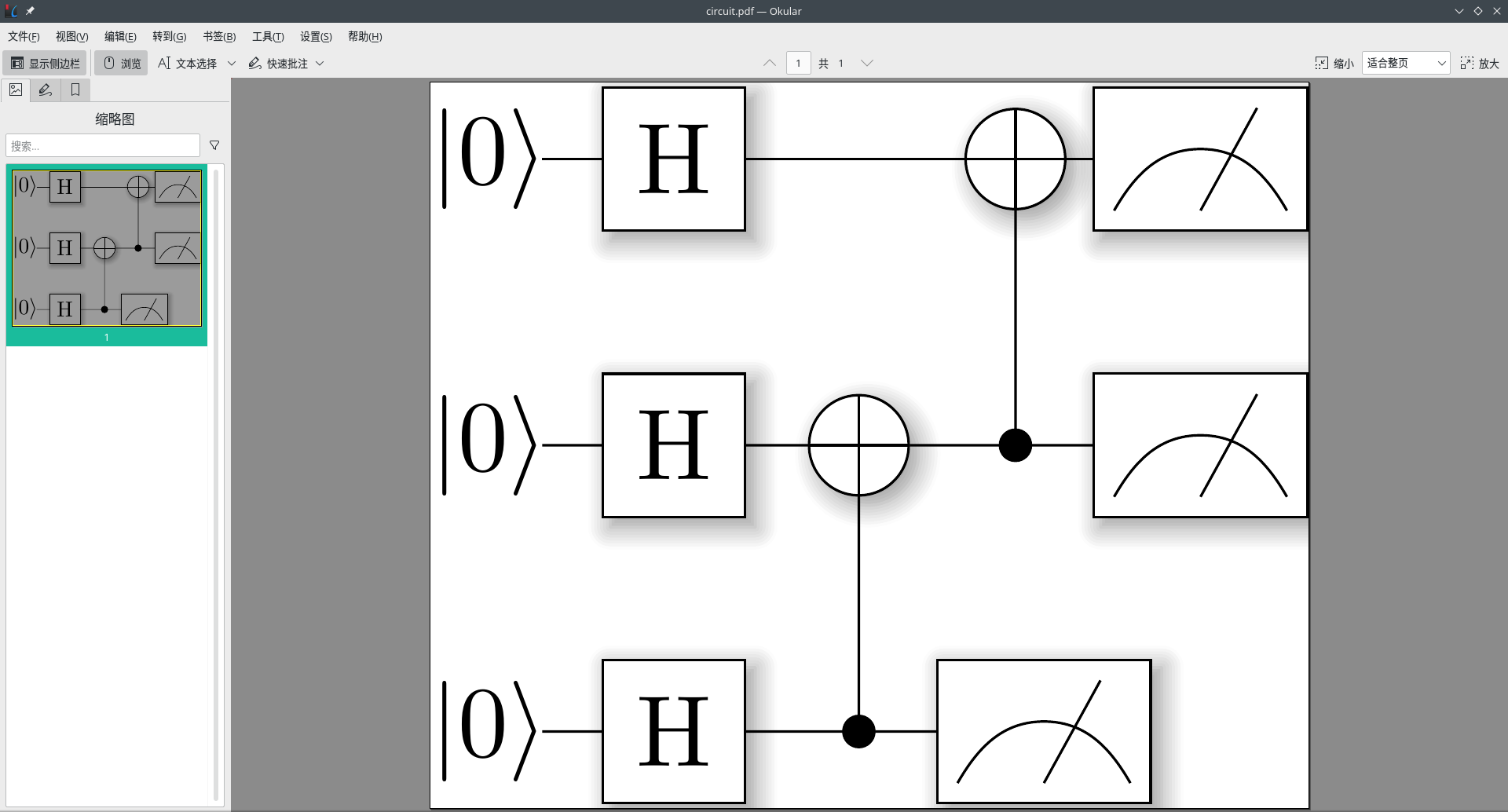

最后我們測試一個比較難的，在前面寫過一篇關于用ProjectQ生成Latex格式的量子線路圖的博客，其中生成了如下所示的一個tex文件：
[dechin@dechin-manjaro quantum-circuit]$ cat circuit.tex
\documentclass{standalone}
\usepackage[margin=1in]{geometry}
\usepackage[hang,small,bf]{caption}
\usepackage{tikz}
\usepackage{braket}
\usetikzlibrary{backgrounds,shadows.blur,fit,decorations.pathreplacing,shapes}
\begin{document}
\begin{tikzpicture}[scale=0.8, transform shape]
\tikzstyle{basicshadow}=[blur shadow={shadow blur steps=8, shadow xshift=0.7pt, shadow yshift=-0.7pt, shadow scale=1.02}]\tikzstyle{basic}=[draw,fill=white,basicshadow]
\tikzstyle{operator}=[basic,minimum size=1.5em]
\tikzstyle{phase}=[fill=black,shape=circle,minimum size=0.1cm,inner sep=0pt,outer sep=0pt,draw=black]
\tikzstyle{none}=[inner sep=0pt,outer sep=-.5pt,minimum height=0.5cm+1pt]
\tikzstyle{measure}=[operator,inner sep=0pt,minimum height=0.5cm, minimum width=0.75cm]
\tikzstyle{xstyle}=[circle,basic,minimum height=0.35cm,minimum width=0.35cm,inner sep=-1pt,very thin]
\tikzset{
shadowed/.style={preaction={transform canvas={shift={(0.5pt,-0.5pt)}}, draw=gray, opacity=0.4}},
}
\tikzstyle{swapstyle}=[inner sep=-1pt, outer sep=-1pt, minimum width=0pt]
\tikzstyle{edgestyle}=[very thin]
\node[none] (line0_gate0) at (0.1,-0) {$\Ket{0}$};
\node[none] (line0_gate1) at (0.5,-0) {};
\node[none,minimum height=0.5cm,outer sep=0] (line0_gate2) at (0.75,-0) {};
\node[none] (line0_gate3) at (1.0,-0) {};
\draw[operator,edgestyle,outer sep=0.5cm] ([yshift=0.25cm]line0_gate1) rectangle ([yshift=-0.25cm]line0_gate3) node[pos=.5] {H};
\draw (line0_gate0) edge[edgestyle] (line0_gate1);
\node[none] (line1_gate0) at (0.1,-1) {$\Ket{0}$};
\node[none] (line1_gate1) at (0.5,-1) {};
\node[none,minimum height=0.5cm,outer sep=0] (line1_gate2) at (0.75,-1) {};
\node[none] (line1_gate3) at (1.0,-1) {};
\draw[operator,edgestyle,outer sep=0.5cm] ([yshift=0.25cm]line1_gate1) rectangle ([yshift=-0.25cm]line1_gate3) node[pos=.5] {H};
\draw (line1_gate0) edge[edgestyle] (line1_gate1);
\node[none] (line2_gate0) at (0.1,-2) {$\Ket{0}$};
\node[none] (line2_gate1) at (0.5,-2) {};
\node[none,minimum height=0.5cm,outer sep=0] (line2_gate2) at (0.75,-2) {};
\node[none] (line2_gate3) at (1.0,-2) {};
\draw[operator,edgestyle,outer sep=0.5cm] ([yshift=0.25cm]line2_gate1) rectangle ([yshift=-0.25cm]line2_gate3) node[pos=.5] {H};
\draw (line2_gate0) edge[edgestyle] (line2_gate1);
\node[xstyle] (line1_gate4) at (1.4000000000000001,-1) {};
\draw[edgestyle] (line1_gate4.north)--(line1_gate4.south);
\draw[edgestyle] (line1_gate4.west)--(line1_gate4.east);
\node[phase] (line2_gate4) at (1.4000000000000001,-2) {};
\draw (line2_gate4) edge[edgestyle] (line1_gate4);
\draw (line1_gate3) edge[edgestyle] (line1_gate4);
\draw (line2_gate3) edge[edgestyle] (line2_gate4);
\node[xstyle] (line0_gate4) at (1.9500000000000002,-0) {};
\draw[edgestyle] (line0_gate4.north)--(line0_gate4.south);
\draw[edgestyle] (line0_gate4.west)--(line0_gate4.east);
\node[phase] (line1_gate5) at (1.9500000000000002,-1) {};
\draw (line1_gate5) edge[edgestyle] (line0_gate4);
\draw (line0_gate3) edge[edgestyle] (line0_gate4);
\draw (line1_gate4) edge[edgestyle] (line1_gate5);
\node[measure,edgestyle] (line0_gate5) at (2.6000000000000005,-0) {};
\draw[edgestyle] ([yshift=-0.18cm,xshift=0.07500000000000001cm]line0_gate5.west) to [out=60,in=180] ([yshift=0.035cm]line0_gate5.center) to [out=0, in=120] ([yshift=-0.18cm,xshift=-0.07500000000000001cm]line0_gate5.east);
\draw[edgestyle] ([yshift=-0.18cm]line0_gate5.center) to ([yshift=-0.07500000000000001cm,xshift=-0.18cm]line0_gate5.north east);
\draw (line0_gate4) edge[edgestyle] (line0_gate5);
\node[measure,edgestyle] (line1_gate6) at (2.6000000000000005,-1) {};
\draw[edgestyle] ([yshift=-0.18cm,xshift=0.07500000000000001cm]line1_gate6.west) to [out=60,in=180] ([yshift=0.035cm]line1_gate6.center) to [out=0, in=120] ([yshift=-0.18cm,xshift=-0.07500000000000001cm]line1_gate6.east);
\draw[edgestyle] ([yshift=-0.18cm]line1_gate6.center) to ([yshift=-0.07500000000000001cm,xshift=-0.18cm]line1_gate6.north east);
\draw (line1_gate5) edge[edgestyle] (line1_gate6);
\node[measure,edgestyle] (line2_gate5) at (2.0500000000000003,-2) {};
\draw[edgestyle] ([yshift=-0.18cm,xshift=0.07500000000000001cm]line2_gate5.west) to [out=60,in=180] ([yshift=0.035cm]line2_gate5.center) to [out=0, in=120] ([yshift=-0.18cm,xshift=-0.07500000000000001cm]line2_gate5.east);
\draw[edgestyle] ([yshift=-0.18cm]line2_gate5.center) to ([yshift=-0.07500000000000001cm,xshift=-0.18cm]line2_gate5.north east);
\draw (line2_gate4) edge[edgestyle] (line2_gate5);
\end{tikzpicture}
\end{document}
這個文件不僅結構復雜，對周邊所依賴的tex文件其實也不少，此前在其他平臺（Win10）測試這個tex文件的編譯的時候，都需要手動的去下載很多的依賴文件，然后放到同一個文件夾下才能正常運行和使用。這里我們直接運行，發現也可以生成這個pdf文件：
說明環境里面確實已經包含了很多必備的工具，跟overleaf的環境應該是比較類似的，使得我們可以在本地非常人性化的、輕便的可以編譯tex文件。
總結概要
為了在本地構建一個可用性強、易于部署的環境，我們選擇了放棄直接安裝pdflatex的方案，以及線上的overleaf的方案。這些方案各有利弊，但是綜合起來看，對于個人使用的環境而言，還是在本地使用docker鏡像直接部署一個tex編譯環境是最方便、最人性化的。
版權聲明
本文首發鏈接為：https://www.cnblogs.com/dechinphy/p/pdflatex.html
作者ID：DechinPhy
參考鏈接https://www.cnblogs.com/dechinphy/p/circuit.html
到此這篇關于docker的pdflatex環境配置的方法步驟的文章就介紹到這了,更多相關docker的pdflatex環境配置內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
