主頁 > 知識庫 > 點擊地圖div上的按鈕實現對地圖數據的入庫操作

點擊地圖div上的按鈕實現對地圖數據的入庫操作

在地圖div上添加一個按鈕，單擊按鈕后彈出一個彈出層，在彈出層的輸入框內輸入數據后點擊提交按鈕將數據提交至數據庫。
mytest_map.jsp的代碼如下：

復制代碼代碼如下:


!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3c.org/TR/1999/REC-html401-19991224/loose.dtd">
html lang='zh-cn' xmlns="http://www.w3.org/1999/xhtml">
head>
meta charset='utf-8' />
title>My OpenLayers Map/title>
link rel="stylesheet" type="text/css" href="openlayers/theme/default/style.css"/>
style type="text/css">
#map {
clear: both;
position: relative;
width: 1000px;
height: 600px;
border: 1px solid black;
}

#operator {
position: absolute;
top:10px;
left:40px;
z-index: 3000;
}

#popDiv {
position: absolute;
visibility: hidden;
overflow: hidden;
border: 2px solid #AEBBCA;
background-color: #EEF1F8;
cursor: move;
padding: 1px;
z-index:4000;
}

#popTitle {
background: #9DACBF;
height: 20px;
line-height: 20px;
padding: 1px;
}

#popForm {
padding: 2px;
padding-left: 15px;
}

.title_left {
font-weight: bold;
padding-left: 5px;
float: left;
}

.title_right {
float: right;
}

#popTitle .title_right a {
color: #000;
text-decoration: none;
}

#popTitle .title_right a:hover {
text-decoration: underline;
color: #FF0000;
}

/style>
script type='text/javascript' src='openlayers/OpenLayers.js'>/script>
script type='text/javascript'>
function init() {
format = 'image/png';
var bounds = new OpenLayers.Bounds(
121.120606, 28.169589,
121.871688, 28.525587
);
var options = {
controls: [],
maxExtent: bounds,
maxResolution: 0.0013726171875,
projection: "EPSG:4326",
units: 'degrees'
};
map = new OpenLayers.Map('map', options);
//基礎圖層，可以用一個圖層組做基礎圖層
var baselayer = new OpenLayers.Layer.WMS(
"底圖",
"http://localhost:8080/geoserver/WenLing/wms",
{
layers:'WenLing:xianjie_region',
format:format,
},
{
isBaseLayer:true,//設置本層為基底圖層
yx : {'EPSG:4326' : true}
}
);

//縣界
var xianjie = new OpenLayers.Layer.WMS(
"縣界",
"http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:xianjie_region',
transparent:true, //設置從服務器返回的地圖圖像是透明的
format: format
},
{
displayInLayerSwitcher:false, //使該圖層不顯示在switcher中
//minScale:xxx , //只有達到一定縮放比例該圖層時才顯示
opacity:0.5 //設置客戶端圖層半透明
}
);

//水系
var waters = new OpenLayers.Layer.WMS(
"水系", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:shuixi_region',
transparent:true,
format: format
},
{
opacity:1 //設置客戶端圖層不透明
}
);

//島嶼
var islands = new OpenLayers.Layer.WMS(
"島", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:dao_region',
transparent:true,
format: format
},
{
opacity:0.5
}
);

//鐵路
var tielu = new OpenLayers.Layer.WMS(
"鐵路", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:tielu_polyline',
transparent:true,
format: format
},
{
transitionEffect:"resize", //使該圖層放大或縮小時產生調整大小的動畫
opacity:0.5
}
);

//縣
var xian = new OpenLayers.Layer.WMS(
"縣", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:xian_point',
transparent:true,
format: format
},
{
//minScale:xxx , //只有達到一定縮放比例該圖層時才顯示
opacity:0.5
}
);

//變電站
biandianzhan = new OpenLayers.Layer.WMS(
"變電站", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:biandianzhan_point',
transparent:true,
format: format
},
{
opacity:0.5
}
);

guangxianwang = new OpenLayers.Layer.WMS(
"光纖網", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:guangxianwang_polyline',
transparent:true,
format: format
},
{
transitionEffect:"resize", //使該圖層放大或縮小時產生調整大小的動畫
opacity:0.5
}
);

map.addLayers([baselayer, xianjie, waters, islands, tielu, xian, biandianzhan, guangxianwang]);

map.setCenter(map.getCenter());//設置地圖中心點
map.addControl(new OpenLayers.Control.PanZoomBar({
position: new OpenLayers.Pixel(2, 15)
}));
map.addControl(new OpenLayers.Control.Navigation());
map.addControl(new OpenLayers.Control.LayerSwitcher());
map.addControl(new OpenLayers.Control.Scale($('scale')));
map.addControl(new OpenLayers.Control.MousePosition());
map.zoomToExtent(bounds);

if (!map.getCenter()) {
map.zoomToMaxExtent();
}

}

function showPopup() {//彈出層
var objDiv = document.getElementById("popDiv");
objDiv.style.top = "50px";//設置彈出層距離上邊界的距離
objDiv.style.left = "200px";//設置彈出層距離左邊界的距離
objDiv.style.width = "300px";//設置彈出層的寬度
objDiv.style.height = "220px";//設置彈出層的高度
//objDiv.style.display = "block";
objDiv.style.visibility = "visible";
}
function hidePopup() {//關閉層
var objDiv = document.getElementById("popDiv");
objDiv.style.visibility = "hidden";
}

/script>
/head>
body onload='init();'>
div id='map'>
div id="operator">!--按鈕所在div-->
input name="" type="button" onclick="showPopup()" value="操作" />
/div>
div id="popDiv">!--彈出層-->
div id="popTitle"> !-- 標題div -->
span class="title_left">修改操作/span> span class="title_right">
a href="#" onclick="hidePopup();">關閉/a> /span>
/div>
div id="popForm"> !-- 表單div -->
form action="insert_map.jsp" method="post">
p>
nbsp;nbsp;nbsp;nbsp;nbsp;nbsp;ID :input type="text" name="id" value="0" /> /br>
名nbsp;nbsp;nbsp;nbsp;稱 :input type="text" name="name" value="aaa" /> /br>
電壓等級 :input type="text" name="voltage_level" value="110kv" /> /br>
經nbsp;nbsp;nbsp;nbsp;度 :input type="text" name="lon" value="121." /> /br>
緯nbsp;nbsp;nbsp;nbsp;度 :input type="text" name="lat" value="28." /> /br>
/p>
nbsp;nbsp; input type="submit" value="提交" />nbsp;nbsp;
nbsp;nbsp; input type="reset" value="重置" />nbsp;nbsp;
nbsp;nbsp; input type="reset" value="取消" onclick="hidePopup()" />
/form>
/div>
/div>
/div>

script type="text/javascript">
/*-------------------------鼠標左鍵拖動---------------------*/
/*--------當不需要實現此功能時，可以將這一部分代碼刪除------------*/
var objDiv = document.getElementById("popDiv");
var isIE = document.all ? true : false;//判斷瀏覽器類型
document.onmousedown = function(evnt) {//當鼠標左鍵按下后執行此函數
var evnt = evnt ? evnt : event;
if (evnt.button == (document.all ? 1 : 0)) {
mouseD = true;//mouseD為鼠標左鍵狀態標志，為true時表示左鍵被按下
}
}

objDiv.onmousedown = function(evnt) {
objDrag = this;//objDrag為拖動的對象
var evnt = evnt ? evnt : event;
if (evnt.button == (document.all ? 1 : 0)) {
mx = evnt.clientX;
my = evnt.clientY;
objDiv.style.left = objDiv.offsetLeft + "px";
objDiv.style.top = objDiv.offsetTop + "px";
if (isIE) {
objDiv.setCapture();
//objDiv.filters.alpha.opacity = 50;//當鼠標按下后透明度改變
} else {
window.captureEvents(Event.MOUSEMOVE);//捕獲鼠標拖動事件
//objDiv.style.opacity = 0.5;//當鼠標按下后透明度改變
}
}
}
document.onmouseup = function() {
mouseD = false;//左鍵松開
objDrag = "";
if (isIE) {
objDiv.releaseCapture();
//objDiv.filters.alpha.opacity = 100;//當鼠標左鍵松開后透明度改變
} else {
window.releaseEvents(objDiv.MOUSEMOVE);//釋放鼠標拖動事件
//objDiv.style.opacity = 1;//當鼠標左鍵松開后透明度改變
}
}

document.onmousemove = function(evnt) {
var evnt = evnt ? evnt : event;
if (mouseD == true  objDrag) {
var mrx = evnt.clientX - mx;
var mry = evnt.clientY - my;
objDiv.style.left = parseInt(objDiv.style.left) + mrx + "px";
objDiv.style.top = parseInt(objDiv.style.top) + mry + "px";
mx = evnt.clientX;
my = evnt.clientY;
}
}
/script>

/body>
/html>

在瀏覽器輸入：http://localhost:8080/myapp/mytestMap.html
訪問到mytestMap.jsp頁面，單擊左上角的“操作”按鈕，結果如下：

在輸入框中輸入測試數據，點擊提交，將會提交至insert_map.jsp頁面，并在insert_map.jsp頁面上顯示出數據庫中所有的點（包括剛剛添加的這個點），效果如下圖：

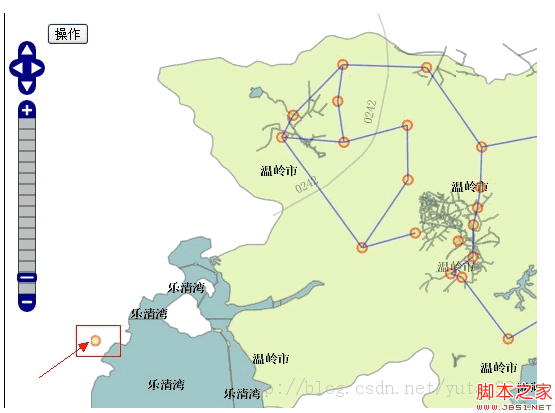

再次在瀏覽器中訪問地圖頁面，可以看到地圖上已經多出了剛剛添加的那個點，如下圖：

至此，基本操作算是完成。

后續需要做的工作有：
1，使點擊提交后仍然顯示在當前頁面，且對地圖進行刷新。
2，完善delete功能、修改功能
3，點擊“操作”按鈕后可以選擇添加、刪除或修改。
