目錄
- python–Folium
- basic example
- Markers
- 標記樣式修改
- 標記圓形區域
- 實戰
python–Folium
官方說明：folium.link.
Map(location=None, width=‘100%', height=‘100%', left=‘0%', top=‘0%', position=‘relative', tiles=‘OpenStreetMap', attr=None, min_zoom=0, max_zoom=18, zoom_start=10, min_lat=- 90, max_lat=90, min_lon=- 180, max_lon=180, max_bounds=False, crs=‘EPSG3857', control_scale=False, prefer_canvas=False, no_touch=False, disable_3d=False, jpg_enabled=False, zoom_control=True, **kwargs)
Parameters 參數說明
- location (tuple or list, default None) – Latitude and Longitude of Map (Northing, Easting).
- width (pixel int or percentage string (default: ‘100%')) – Width of the map.
- height (pixel int or percentage string (default: ‘100%')) – Height of the map.
- tiles (str, default ‘OpenStreetMap') – Map tileset to use. Can choose from a list of built-in tiles, pass a custom URL or pass None to create a map without tiles. For more advanced tile layer options, use the TileLayer class.
- min_zoom (int, default 0) – Minimum allowed zoom level for the tile layer that is created.
- max_zoom (int, default 18) – Maximum allowed zoom level for the tile layer that is created.
- zoom_start (int, default 10) – Initial zoom level for the map.
- attr (string, default None) – Map tile attribution; only required if passing custom tile URL.
- crs (str, default ‘EPSG3857') – Defines coordinate reference systems for projecting geographical points into pixel (screen) coordinates and back.定義坐標參考系統
- control_scale (bool, default False) – Whether to add a control scale on the map.
- prefer_canvas (bool, default False) – Forces Leaflet to use the Canvas back-end (if available) for vector layers instead of SVG.
- no_touch (bool, default False) – Forces Leaflet to not use touch events even if it detects them.
- disable_3d (bool, default False) – Forces Leaflet to not use hardware-accelerated CSS 3D transforms for positioning (which may cause glitches in some rare environments) even if they're supported.
- zoom_control (bool, default True) – Display zoom controls on the map.
basic example
m = folium.Map(location=[45.523, -122.675], width=750, height=500)
m = folium.Map(location=[45.523, -122.675], tiles='cartodb positron')
m = folium.Map(
location=[45.523, -122.675],
zoom_start=2,
tiles='https://api.mapbox.com/v4/mapbox.streets/{z}/{x}/{y}.jpg?access_token=mytoken',
attr='Mapbox attribution'
...)
Markers
m = folium.Map(location=[45.372, -121.6972], zoom_start=12, tiles="Stamen Terrain")
tooltip = "Click me!"
folium.Marker(
[45.3288, -121.6625], popup="i>Mt. Hood Meadows/i>", tooltip=tooltip
).add_to(m)
tooltip：點擊標記后彈出的信息
popup：鼠標放標記上顯示的信息

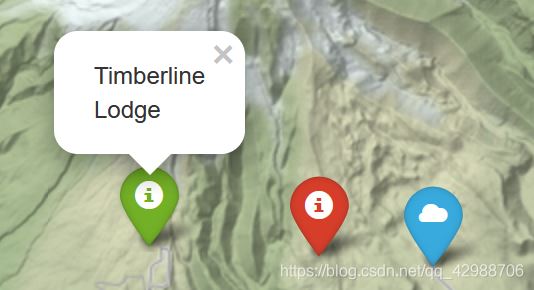

標記樣式修改
m = folium.Map(location=[45.372, -121.6972], zoom_start=12, tiles="Stamen Terrain")
folium.Marker(
location=[45.3288, -121.6625],
popup="Mt. Hood Meadows",
icon=folium.Icon(icon="cloud"),
).add_to(m)
folium.Marker(
location=[45.3311, -121.7113],
popup="Timberline Lodge",
icon=folium.Icon(color="green"),
).add_to(m)
folium.Marker(
location=[45.3300, -121.6823],
popup="Some Other Location",
icon=folium.Icon(color="red", icon="info-sign"),
).add_to(m)
標記圓形區域

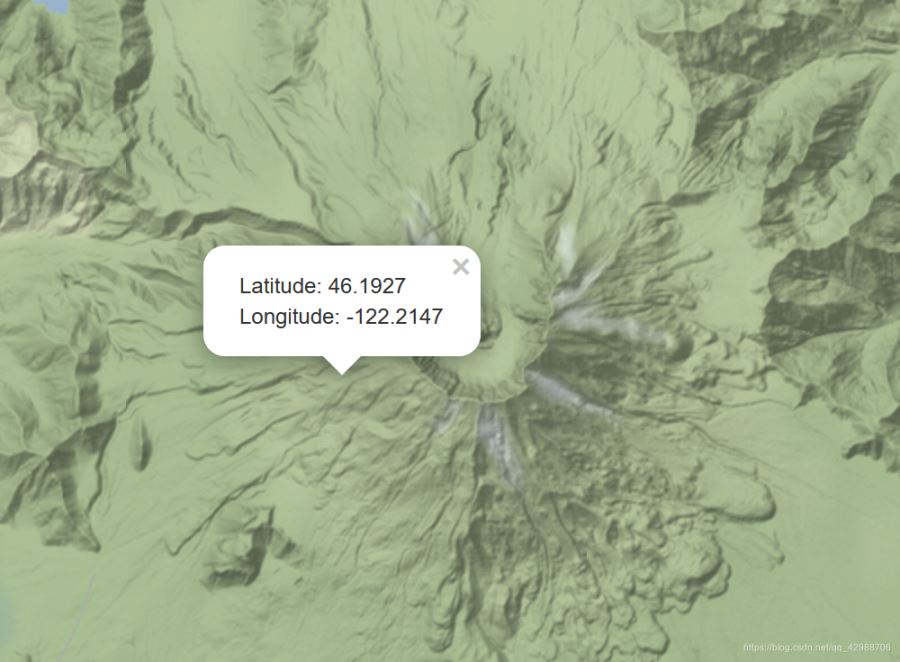

點擊任意位置出現經緯度folium.LatLngPopup()
m = folium.Map(location=[46.1991, -122.1889], tiles="Stamen Terrain", zoom_start=13)
m.add_child(folium.LatLngPopup())

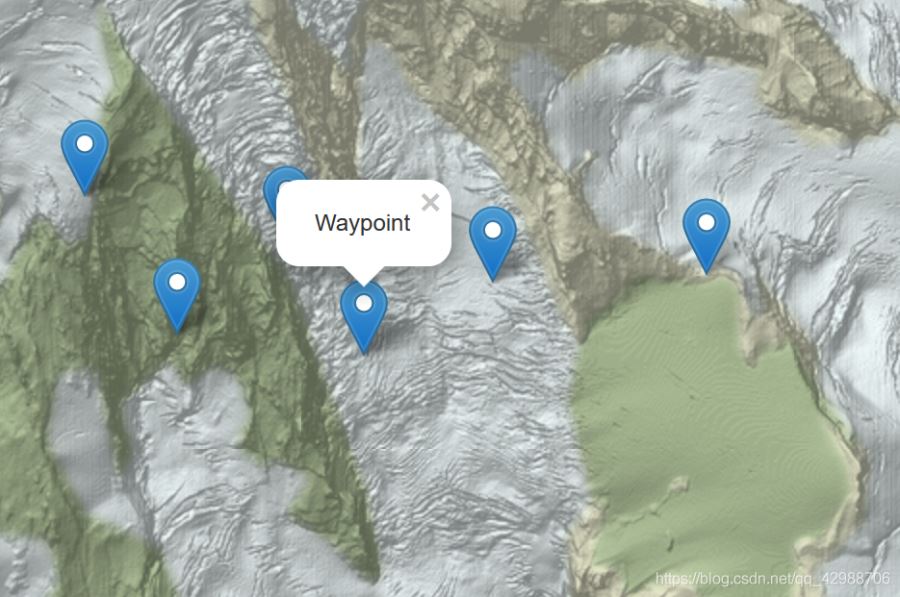

打點功能：點擊任意位置出現標記，再點擊彈出信息
m = folium.Map(location=[46.8527, -121.7649], tiles="Stamen Terrain", zoom_start=13)
folium.Marker([46.8354, -121.7325], popup="Camp Muir").add_to(m)
m.add_child(folium.ClickForMarker(popup="Waypoint"))
允許顯示任何HTML對象
m = folium.Map(location=[46.3014, -123.7390], zoom_start=7, tiles="Stamen Terrain")
folium.Marker(
location=[47.3489, -124.708],
popup=folium.Popup(max_width=450).add_child(
folium.Vega(vis1, width=450, height=250)
),
).add_to(m)
可以參考的代碼
html參考鏈接
實戰
用folium繪制中國的政策地圖，城市的政策匯總在一個excel表中。要實現的效果是政策可視化，點擊某一個城市，可以彈出這個城市所有的政策。
import folium
import webbrowser as wb
import numpy as np
import xlrd
import pandas as pd
from folium import CustomIcon
def get_data():
'''
return:
df_data:返回城市對應的編號,經緯度
df_policy:返回城市的政策名稱、鏈接、編號
'''
file_name = 'policy.xls'
all_data = xlrd.open_workbook(file_name)
table = all_data.sheet_by_name('num_lat_lon')
df_data = pd.DataFrame(columns=['city','number','latitude','longitude'])
for i in range(1,table.nrows):
df_data.loc[i] = table.row_values(i)
table_policy = all_data.sheet_by_name('policy')
df_policy = pd.DataFrame(columns=['number','name','link'])
for i in range(1,table_policy.nrows):
df_policy.loc[i,'number'] = table_policy.cell(i,3).value
df_policy.loc[i,'name'] = table_policy.cell(i,1).value
df_policy.loc[i,'link'] = table_policy.cell(i,2).value
return df_data, df_policy
# 中文轉換
def parse_zhch(s):
return str(str(s).encode('ascii' , 'xmlcharrefreplace'))[2:-1]
def show_map(df_data,df_policy):
'''
可以使用高德地圖或默認地圖
m = folium.Map(zoom_start=4,zoom_control=True,tiles='http://webrd02.is.autonavi.com/appmaptile?lang=zh_cnsize=1scale=1style=7x={x}y={y}z={z}',attr='default')
'''
# 默認地圖
m = folium.Map(location=[39.904,116.408],zoom_start=4,zoom_control=True,tiles='OpenStreetMap')
for i in range(1,len(df_data)):
# 得到該城市的編號、經緯度
number = df_data.loc[i,'number']
latitude = df_data.loc[i,'latitude']
longitude = df_data.loc[i,'longitude']
tip = df_data.loc[i,'city']
# 獲取城市編號對應的所有政策和鏈接的行索引
city_index = df_policy[df_policy.number == number].index.tolist()
# 將城市名稱和鏈接放同一個list中
s=[]
for i in city_index:
s.append(df_policy.loc[i,'name'])
s.append(df_policy.loc[i,'link'])
# 計算最大長度
length = []
for i in range(len(s)):
length.append(len(s[i]))
WIDTH = max(length)
# 點擊彈出內容和彈出框大小設置
ss=''
for i in range(len(s)):
ss = ss + s[i] + '/br>'
pop = folium.Popup(html=ss,max_width=WIDTH*10)
icon = CustomIcon(icon_image ='loc.jpg',icon_size=(20, 20))
# tooltip：懸浮彈出信息；popup：點擊出現信息
folium.Marker([latitude,longitude],icon=icon, popup=pop,tooltip=parse_zhch(tip)).add_to(m)
m.save('map.html')
wb.open('map.html')
if __name__ == '__main__':
df_data,df_policy = get_data()
show_map(df_data,df_policy)

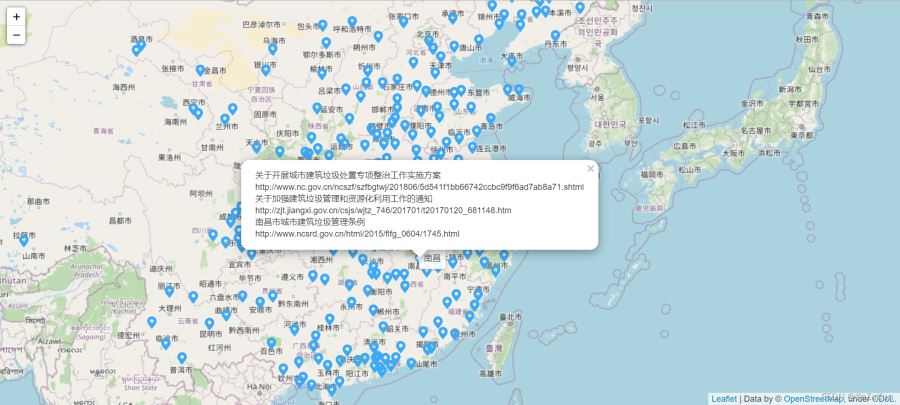

實現效果：
到此這篇關于python用folium繪制地圖并設置彈窗效果的文章就介紹到這了,更多相關python folium繪制地圖內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
