// 繪制同心圓
void DrawConcentricCircle(cv::Mat mask, const cv::Point2i center, int radius1,int radius2, const cv::Scalar color, int thickness,int linetype)
{
	// 創建畫布
	cv::Mat canvas = cv::Mat::zeros(mask.size(), CV_8UC1);

	// 計算內徑和外徑
	int inradius = min(radius1, radius2);
	int outradius = max(radius1, radius2);

	// 分情況討論

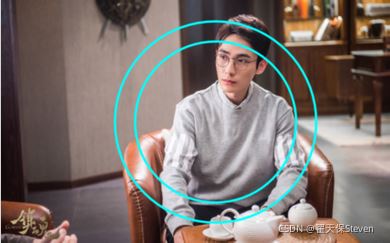

	// 當thickness大于0時，繪制的是兩個圓型線條組成的同心圓，不需填充
	if (thickness > 0)
	{
		cv::circle(mask, center, outradius, color, thickness, linetype);
		cv::circle(mask, center, inradius, color, thickness, linetype);
	}

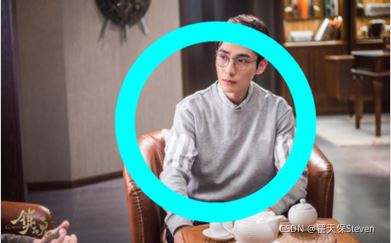

	// 當thickness小于0，一般為-1，繪制的是填充同心圓，內圓不能有填充色
	else {
		cv::circle(canvas, center, outradius, cv::Scalar(255), -1, linetype);
		cv::circle(canvas, center, inradius, cv::Scalar(0), -1, linetype);
		int row = mask.rows;
		int col = mask.cols;
		for (int i = 0; i  row; ++i)
		{
			for (int j = 0; j  col; ++j)
			{
				uchar *m = canvas.ptruchar>(i);
				if (m[j] == 255)
				{
					mask.atVec3b>(i, j)[0] = static_castuchar>(color[0]);
					mask.atVec3b>(i, j)[1] = static_castuchar>(color[1]);
					mask.atVec3b>(i, j)[2] = static_castuchar>(color[2]);
				}

			}
		}
	}
}

#include iostream>
#include opencv2/opencv.hpp>
#include stdio.h>
using namespace std;
using namespace cv;

void DrawConcentricCircle(cv::Mat mask, const cv::Point2i center, int radius1, int radius2, const cv::Scalar color, int thickness, int linetype);

int main()
{
	cv::Mat src = imread("test.jpg");
	cv::Mat result = src.clone();
	DrawConcentricCircle(result, cv::Point(result.cols / 2, result.rows / 2), 300, 500, cv::Scalar(255, 255, 0),-10, 16);

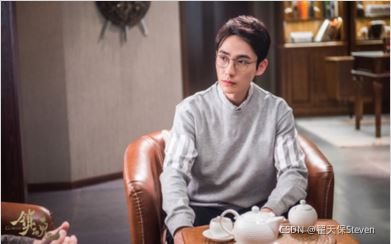

	imshow("original", src);
	imshow("result", result);
	waitKey(0);
	system("pause");
	return 0;
}

// 繪制同心圓
void DrawConcentricCircle(cv::Mat mask, const cv::Point2i center, int radius1,int radius2, const cv::Scalar color, int thickness,int linetype)
{
	// 創建畫布
	cv::Mat canvas = cv::Mat::zeros(mask.size(), CV_8UC1);

	// 計算內徑和外徑
	int inradius = min(radius1, radius2);
	int outradius = max(radius1, radius2);

	// 分情況討論
	// 當thickness大于0時，繪制的是兩個圓型線條組成的同心圓，不需填充
	if (thickness > 0)
	{
		cv::circle(mask, center, outradius, color, thickness, linetype);
		cv::circle(mask, center, inradius, color, thickness, linetype);
	}
	// 當thickness小于0，一般為-1，繪制的是填充同心圓，內圓不能有填充色
	else {
		cv::circle(canvas, center, outradius, cv::Scalar(255), -1, linetype);
		cv::circle(canvas, center, inradius, cv::Scalar(0), -1, linetype);
		int row = mask.rows;
		int col = mask.cols;
		for (int i = 0; i  row; ++i)
		{
			for (int j = 0; j  col; ++j)
			{
				uchar *m = canvas.ptruchar>(i);
				if (m[j] == 255)
				{
					mask.atVec3b>(i, j)[0] = static_castuchar>(color[0]);
					mask.atVec3b>(i, j)[1] = static_castuchar>(color[1]);
					mask.atVec3b>(i, j)[2] = static_castuchar>(color[2]);
				}

			}
		}
	}
}
