conda install -c conda-forge geopandas

conda install -c https://mirrors.tuna.tsinghua.edu.cn/anaconda/cloud/conda-forge geopandas

import geopandas as gpd
from matplotlib import pyplot as plt

data = gpd.read_file(r'E:\gisData\行政區劃數據2019\省.shp')#讀取磁盤上的矢量文件
#data = gpd.read_file('shapefile/china.gdb', layer='province')#讀取gdb中的矢量數據
print(data.crs)  # 查看數據對應的投影信息
print(data.head())  # 查看前5行數據
data.plot()
plt.show()#簡單展示

# 對應shapely.geometry中的Point，用于表示單個點，下面我們創建一個由若干Point對象組成
cq = geopandas.GeoSeries([geometry.Point(110, 60),
                          geometry.Point(110.5, 50.4),
                          geometry.Point(120, 55),
                          geometry.Point(107.8, 54.6),
                          geometry.Point(114.6, 50)],
                         crs='EPSG:4326',  # 指定坐標系為WGS 1984
                         index=['一號', '二號', '三號', '四號', '五號'],  # 相關的索引
                         )
# 導出數據為shapefile文件
cq.to_file('./output/{}.shp'.format(os.path.basename(__file__).replace('.py', '')),
           driver='ESRI Shapefile',
           encoding='utf-8')

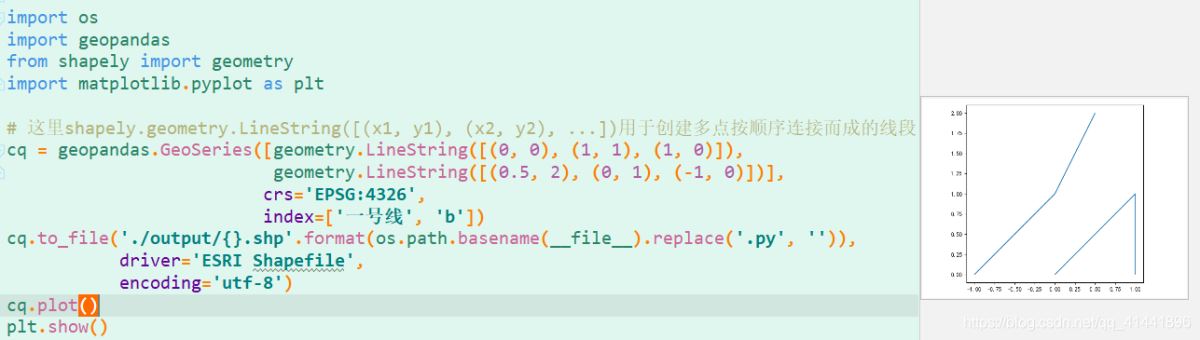

# 這里shapely.geometry.LineString([(x1, y1), (x2, y2), ...])用于創建多點按順序連接而成的線段
cq = geopandas.GeoSeries([geometry.LineString([(0, 0), (1, 1), (1, 0)]),
                          geometry.LineString([(0.5, 2), (0, 1), (-1, 0)])],
                         crs='EPSG:4326',
                         index=['一號線', 'b'])
cq.to_file('./output/{}.shp'.format(os.path.basename(__file__).replace('.py', '')),
           driver='ESRI Shapefile',
           encoding='utf-8')

# 對應shapely.geometry中的Polygon，用于表示面，下面我們創建一個由若干Polygon對象組成
cq = geopandas.GeoSeries([geometry.Polygon([(14, 14), (13, 18), (20, 11), (18, 10)]),
                          geometry.Polygon([(0, 0), (10, 0), (10, 10), (0, 10)],
                                           [((1, 3), (5, 3), (5, 1), (1, 1)),
                                            ((9, 9), (9, 8), (8, 8), (8, 9))]),
                          geometry.Polygon([(11, 2), (11, 10), (12, 10), (12, 2)])
                          ],
                         index=['簡單面', '復雜面', 'c區'],  # 構建一個索引字段
                         crs='EPSG:4326',  # 坐標系是：WGS 1984
                         )
cq.to_file('./output/{}.shp'.format(os.path.basename(__file__).replace('.py', '')),
           driver='ESRI Shapefile',
           encoding='utf-8')

# -*- coding: utf-8 -*-

import pandas as pd
import geopandas as gpd
from shapely.geometry import Point
from matplotlib import pyplot as plt
from matplotlib.ticker import FuncFormatter

# 讀取數據

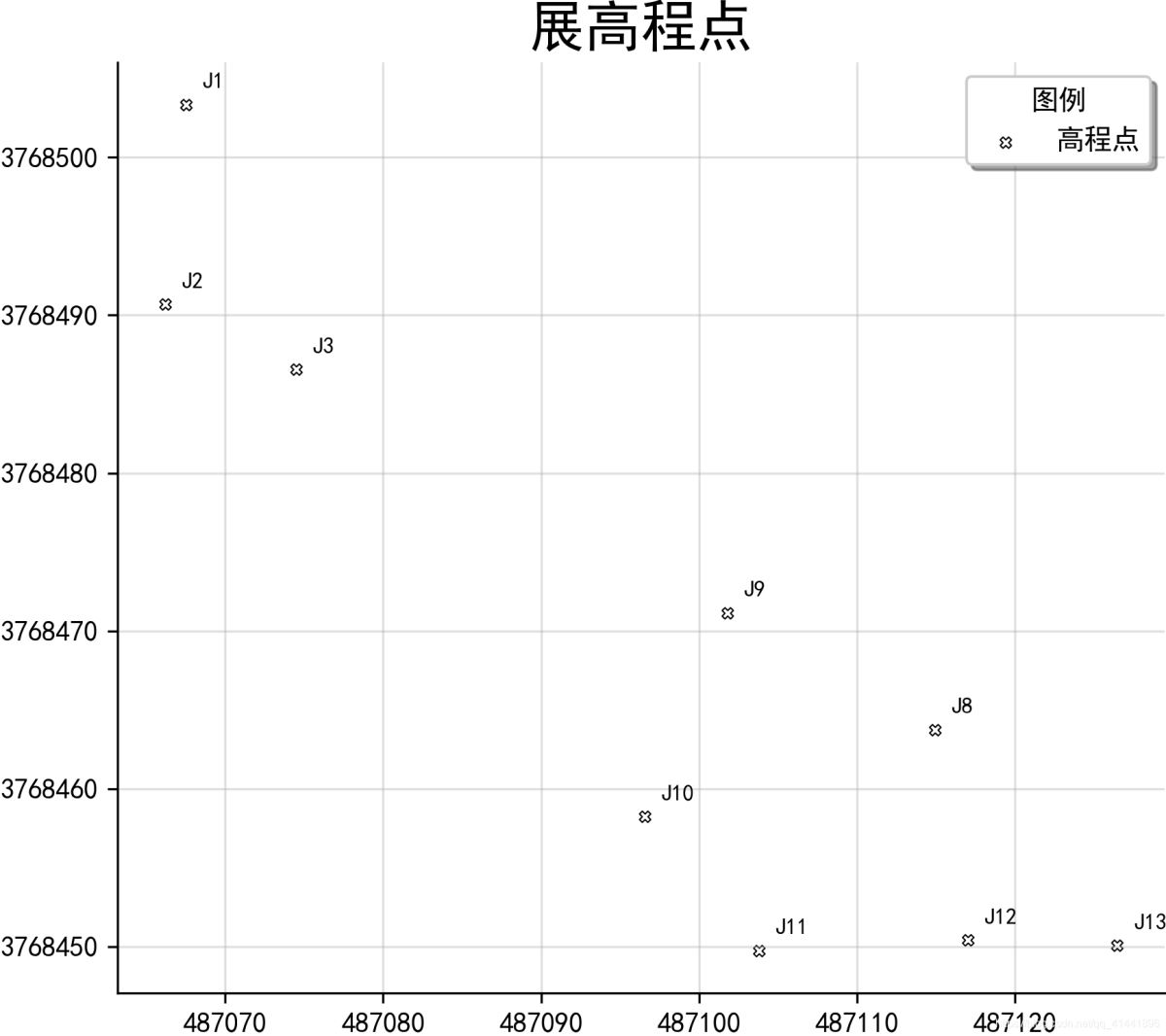

file_path = './data-use/高程數據.csv'
rankings_colname = ['name', 'mark', 'longitude', 'latitude', 'height'];
df = pd.read_csv(file_path, header=None, names=rankings_colname)
# print(df.head(5))#輸出前五行數據查看
xy = [Point(xy) for xy in zip(df['longitude'], df['latitude'])]
pts = gpd.GeoSeries(xy)  # 創建點要素?cái)?shù)據集
#保存為SHP文件
pts.to_file('./output/展高程點.shp', driver='ESRI Shapefile', encoding='utf-8')
"""fig是用來設置圖像大小參數，ax是行列有多少個點"""
fig, ax = plt.subplots(figsize=(8, 6))  # 返回一個包含figure和axes對象的元組
ax = pts.plot(ax=ax,
              facecolor='white',
              edgecolor='black',
              marker='X',
              linewidth=0.5,  # 內外符號比例系數
              markersize=12,
              label='高程點')
# 地圖標注
new_texts = [plt.text(x_ + 1, y_ + 1, text, fontsize=8) for x_, y_, text in
             zip(df['longitude'], df['latitude'], df['name'])]


# 設置坐標軸
def formatnum(x, pos):
    # return '$%.1f$x$10^{4}$' % (x / 10000)#科學計數法顯示
    return int(x)  # 取整顯示


formatter = FuncFormatter(formatnum)
ax.yaxis.set_major_formatter(formatter)

# 美觀起見隱藏頂部與右側邊框線
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
plt.grid(True, alpha=0.4)  # 顯示網格，透明度為50%
ax.legend(title="圖例", loc='lower right', ncol=1, shadow=True) # 添加圖例
plt.title('展高程點', fontdict={'weight': 'normal', 'size': 20}) # 設置圖名改變圖標題字體
# 保存圖片
plt.savefig('images/展高程點.png', dpi=300, bbox_inches='tight', pad_inches=0)
plt.show()

import geopandas as gpd
import pandas as pd
from shapely.geometry import Polygon
from matplotlib import pyplot as plt

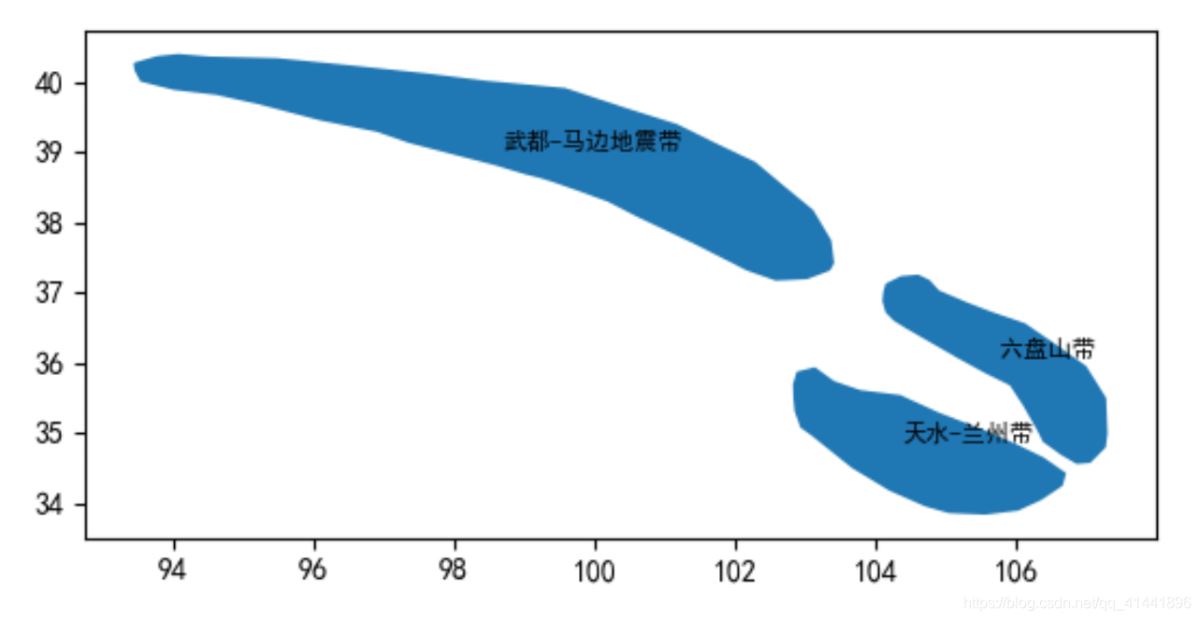

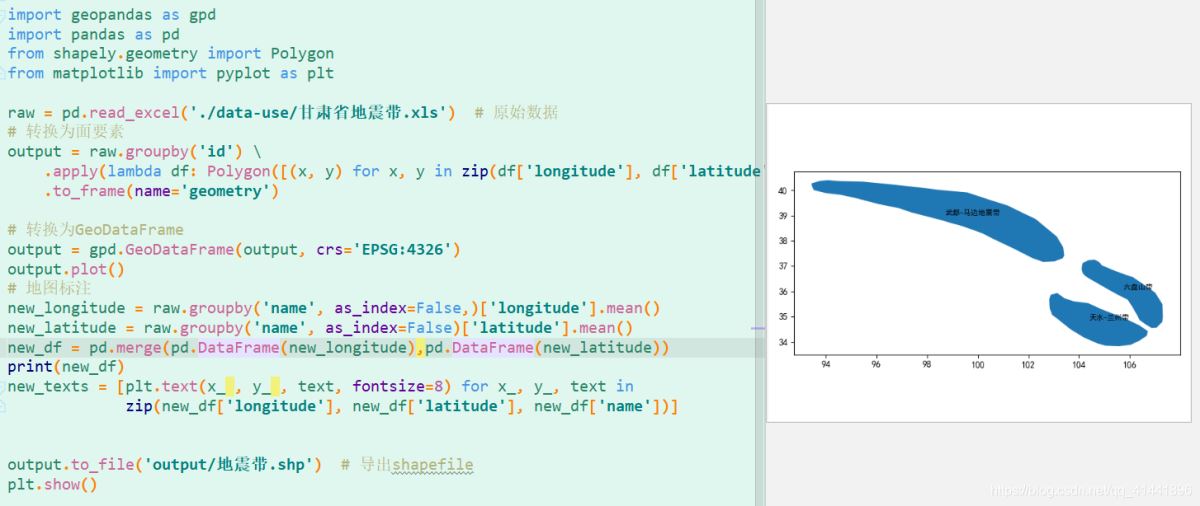

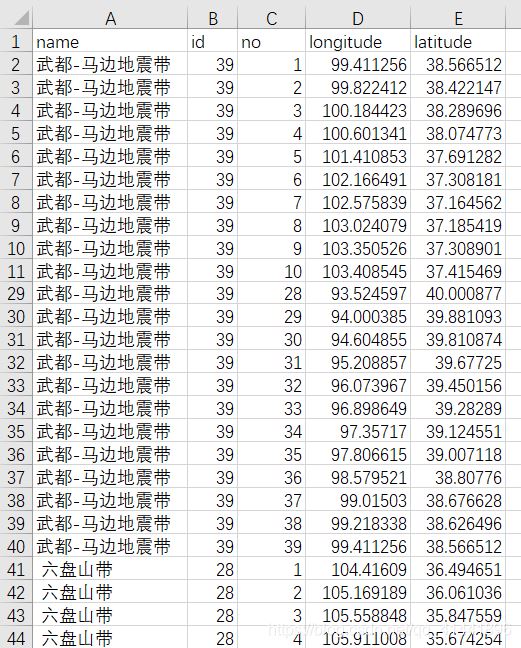

raw = pd.read_excel('./data-use/甘肅省地震帶.xls')  # 原始數據
# 轉換為面要素
output = raw.groupby('id') \

    .apply(lambda df: Polygon([(x, y) for x, y in zip(df['longitude'], df['latitude'])])) \

    .to_frame(name='geometry')

# 轉換為GeoDataFrame
output = gpd.GeoDataFrame(output, crs='EPSG:4326')
output.plot()
# 地圖標注
new_longitude = raw.groupby('name', as_index=False,)['longitude'].mean()
new_latitude = raw.groupby('name', as_index=False)['latitude'].mean()
new_df = pd.merge(pd.DataFrame(new_longitude),pd.DataFrame(new_latitude))
new_texts = [plt.text(x_ , y_ , text, fontsize=8) for x_, y_, text in
             zip(new_df['longitude'], new_df['latitude'], new_df['name'])]
# 導出shapefile
output.to_file('output/地震帶.shp')
plt.show()

import os
import shapely
import geopandas as gpd
import matplotlib.pyplot as plt

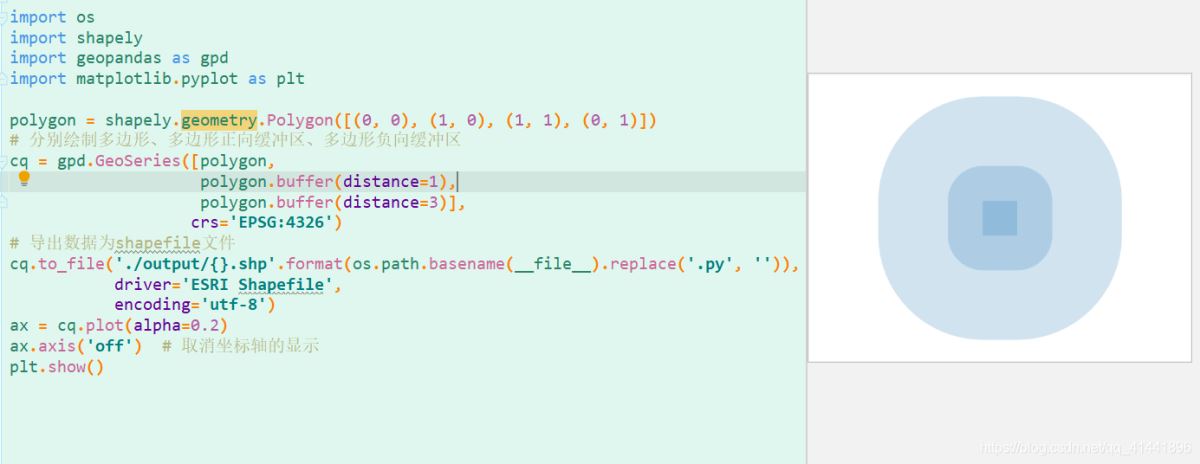

polygon = shapely.geometry.Polygon([(0, 0), (1, 0), (1, 1), (0, 1)])
# 分別繪制多邊形、多邊形正向緩沖區，坐標系是WGS1984，單位是度
cq = gpd.GeoSeries([polygon,
                    polygon.buffer(distance=1),
                    polygon.buffer(distance=3)],
                   crs='EPSG:4326')
# 導出數據為shapefile文件
cq.to_file('./output/{}.shp'.format(os.path.basename(__file__).replace('.py', '')),
           driver='ESRI Shapefile',
           encoding='utf-8')
ax = cq.plot(alpha=0.2)
ax.axis('off')  # 取消坐標軸的顯示
plt.show()
