matplotlib 畫圖功能非常強大，目前也只能根據官網 提供的例子簡單地畫幾張圖。最近學習了能畫動態圖的animation模塊，作個簡單地記錄。
在matplotlib作圖中，比較常用的是matplotlib.pyplot模塊，這個模塊有非常多的屬性和方法，簡要列舉下這次用到的方法：
matplotlib.pyplot.subplots(nrows=1, ncols=1, sharex=False, sharey=False, squeeze=True, subplot_kw=None, gridspec_kw=None, **fig_kw)
返回fig和ax對象！
例子1. 動態畫出sin函數曲線
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
fig, ax = plt.subplots()
xdata, ydata = [], []
ln, = ax.plot([], [], 'r-', animated=False)
def init():
ax.set_xlim(0, 2*np.pi)
ax.set_ylim(-1, 1)
return ln,
def update(frame):
xdata.append(frame)
ydata.append(np.sin(frame))
ln.set_data(xdata, ydata)
return ln,
ani = FuncAnimation(fig, update, frames=np.linspace(0, 2*np.pi, 128),
init_func=init, blit=True)
plt.show()
畫這類圖的關鍵是要給出不斷更新的函數，這里就是update 函數了。注意, line, = ax.plot([], [], 'r-', animated=False) 中的, 表示創建tuple類型。迭代更新的數據frame 取值從frames 取得。

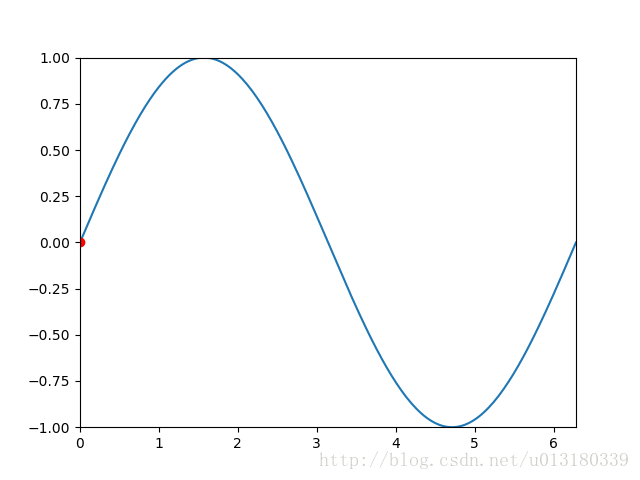

例子2. 動態顯示一個動點，它的軌跡是sin函數。
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import animation
"""
animation example 2
author: Kiterun
"""
fig, ax = plt.subplots()
x = np.linspace(0, 2*np.pi, 200)
y = np.sin(x)
l = ax.plot(x, y)
dot, = ax.plot([], [], 'ro')
def init():
ax.set_xlim(0, 2*np.pi)
ax.set_ylim(-1, 1)
return l
def gen_dot():
for i in np.linspace(0, 2*np.pi, 200):
newdot = [i, np.sin(i)]
yield newdot
def update_dot(newd):
dot.set_data(newd[0], newd[1])
return dot,
ani = animation.FuncAnimation(fig, update_dot, frames = gen_dot, interval = 100, init_func=init)
ani.save('sin_dot.gif', writer='imagemagick', fps=30)
plt.show()
這里我們把生成的動態圖保存為gif圖片，前提要預先安裝imagemagic。

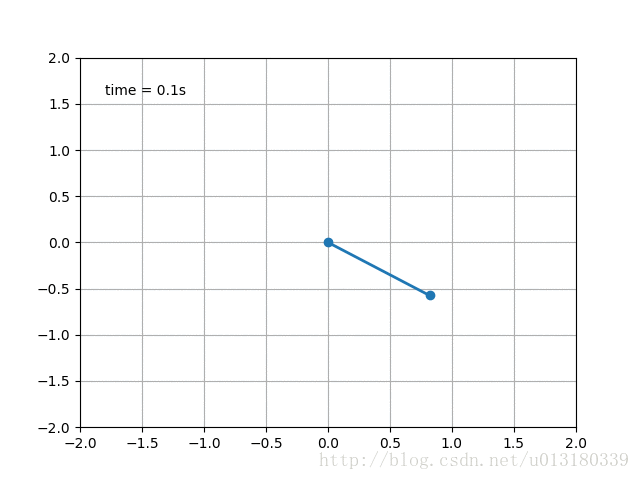

例子3. 單擺（沒阻尼有阻尼）
無阻尼的單擺力學公式：
附加阻尼項：
這里需要用到scipy.integrate的odeint模塊，具體用法找時間再專門寫一篇blog吧，動態圖代碼如下：
# -*- coding: utf-8 -*-
from math import sin, cos
import numpy as np
from scipy.integrate import odeint
import matplotlib.pyplot as plt
import matplotlib.animation as animation
g = 9.8
leng = 1.0
b_const = 0.2
# no decay case:
def pendulum_equations1(w, t, l):
th, v = w
dth = v
dv = - g/l * sin(th)
return dth, dv
# the decay exist case:
def pendulum_equations2(w, t, l, b):
th, v = w
dth = v
dv = -b/l * v - g/l * sin(th)
return dth, dv
t = np.arange(0, 20, 0.1)
track = odeint(pendulum_equations1, (1.0, 0), t, args=(leng,))
#track = odeint(pendulum_equations2, (1.0, 0), t, args=(leng, b_const))
xdata = [leng*sin(track[i, 0]) for i in range(len(track))]
ydata = [-leng*cos(track[i, 0]) for i in range(len(track))]
fig, ax = plt.subplots()
ax.grid()
line, = ax.plot([], [], 'o-', lw=2)
time_template = 'time = %.1fs'
time_text = ax.text(0.05, 0.9, '', transform=ax.transAxes)
def init():
ax.set_xlim(-2, 2)
ax.set_ylim(-2, 2)
time_text.set_text('')
return line, time_text
def update(i):
newx = [0, xdata[i]]
newy = [0, ydata[i]]
line.set_data(newx, newy)
time_text.set_text(time_template %(0.1*i))
return line, time_text
ani = animation.FuncAnimation(fig, update, range(1, len(xdata)), init_func=init, interval=50)
#ani.save('single_pendulum_decay.gif', writer='imagemagick', fps=100)
ani.save('single_pendulum_nodecay.gif', writer='imagemagick', fps=100)
plt.show()

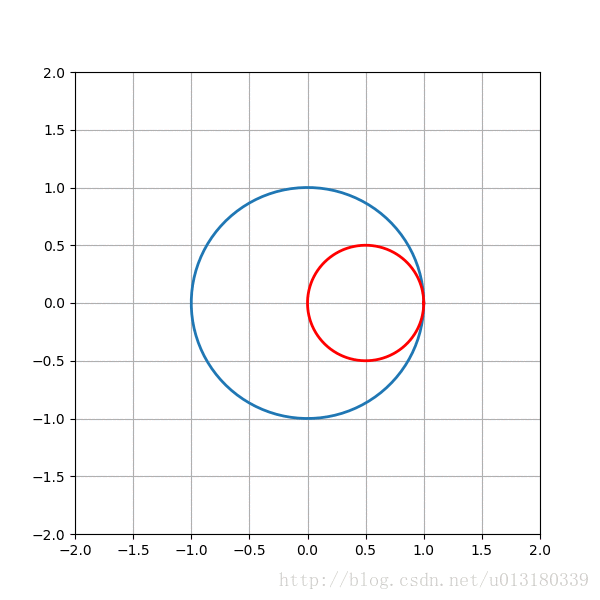

例子4. 滾動的球
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as animation
fig = plt.figure(figsize=(6, 6))
ax = plt.gca()
ax.grid()
ln1, = ax.plot([], [], '-', lw=2)
ln2, = ax.plot([], [], '-', color='r', lw=2)
theta = np.linspace(0, 2*np.pi, 100)
r_out = 1
r_in = 0.5
def init():
ax.set_xlim(-2, 2)
ax.set_ylim(-2, 2)
x_out = [r_out*np.cos(theta[i]) for i in range(len(theta))]
y_out = [r_out*np.sin(theta[i]) for i in range(len(theta))]
ln1.set_data(x_out, y_out)
return ln1,
def update(i):
x_in = [(r_out-r_in)*np.cos(theta[i])+r_in*np.cos(theta[j]) for j in range(len(theta))]
y_in = [(r_out-r_in)*np.sin(theta[i])+r_in*np.sin(theta[j]) for j in range(len(theta))]
ln2.set_data(x_in, y_in)
return ln2,
ani = animation.FuncAnimation(fig, update, range(len(theta)), init_func=init, interval=30)
ani.save('roll.gif', writer='imagemagick', fps=100)
plt.show()
到此這篇關于Matplotlib animation模塊實現動態圖 的文章就介紹到這了,更多相關Matplotlib 動態圖 內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
