Harbor安裝那里還是很簡單,就是在Docker Login那里掉坑里去了,搞半天,寫博客的時候,又重新安裝了一遍
1.準備兩臺服務器
- centos7
- harbor 10.19.46.15
- client 10.19.44.31
2.harbor需要安裝docker和docker-composere,client只需要安裝docker
Docker安裝
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum -y install docker-ce
systemctl start docker
Docker Compose 安裝
Docker Compose 安裝
yum install epel-release
yum install -y python-pip
pip install docker-compose
yum install git

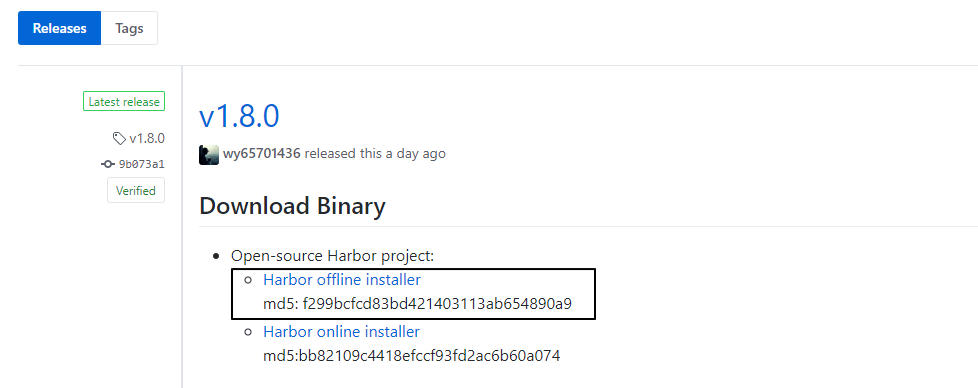

harbor1.8 下載
https://github.com/goharbor/harbor/releases
解壓出來
[root@harbor harbor]# ll
總用量 32
-rw-r--r--. 1 root root 4519 5月 21 15:59 harbor.yml
-rwxr-xr-x. 1 root root 5088 5月 21 15:59 install.sh
-rw-r--r--. 1 root root 11347 5月 21 15:59 LICENSE
-rwxr-xr-x. 1 root root 1654 5月 21 15:59 prepare
修改harbor.yml
hostname 這里設置本機的ip
harbor_admin_password web頁面的密碼
運行
安裝成功
......
Status: Downloaded newer image for goharbor/harbor-registryctl:v1.8.0
Creating harbor-log ... done
Creating harbor-db ... done
Creating registry ... done
Creating redis ... done
Creating registryctl ... done
Creating harbor-core ... done
Creating harbor-jobservice ... done
Creating harbor-portal ... done
Creating nginx ... done
✔ ----Harbor has been installed and started successfully.----
Now you should be able to visit the admin portal at http://10.19.46.15.
For more details, please visit https://github.com/goharbor/harbor .

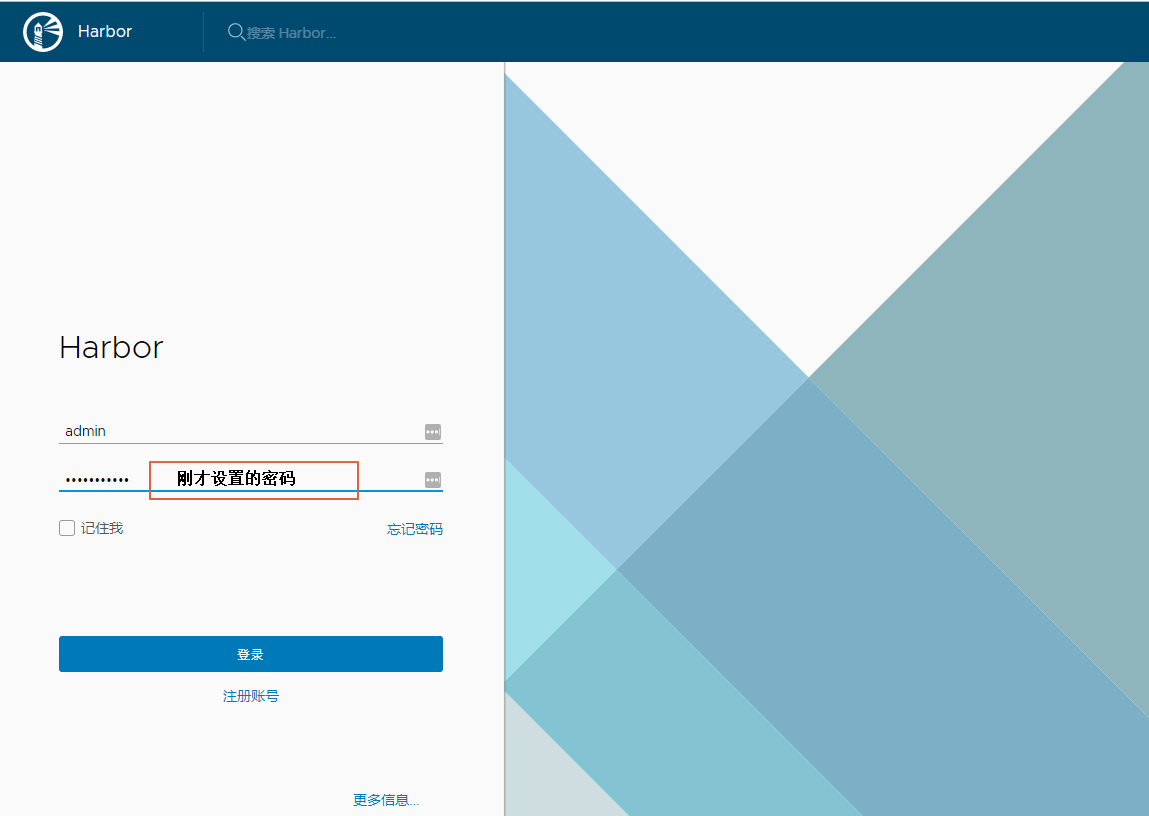

訪問頁面
http://10.19.46.15
如果想要停止,或者是服務器重啟了,需要手動重啟,在harbor的安裝目錄,里執行命令
[root@harbor harbor]# ll
總用量 40
drwxr-xr-x. 3 root root 20 5月 22 22:24 common
-rw-r-----. 1 root root 5183 5月 22 22:24 docker-compose.yml
-rw-r--r--. 1 root root 4514 5月 22 22:23 harbor.yml
-rwxr-xr-x. 1 root root 5088 5月 21 15:59 install.sh
-rw-r--r--. 1 root root 11347 5月 21 15:59 LICENSE
-rwxr-xr-x. 1 root root 1654 5月 21 15:59 prepare
# 停止
[root@harbor harbor]# docker-compose stop
Stopping nginx ... done
Stopping harbor-portal ... done
Stopping harbor-jobservice ... done
Stopping harbor-core ... done
Stopping registryctl ... done
Stopping redis ... done
Stopping registry ... done
Stopping harbor-db ... done
Stopping harbor-log ... done
# 運行
[root@harbor harbor]# docker-compose start
Starting log ... done
Starting postgresql ... done
Starting redis ... done
Starting registry ... done
Starting core ... done
Starting jobservice ... done
Starting portal ... done
Starting proxy ... done
Starting registryctl ... done
在另外一個服務器登錄harbor
[root@client ~]# docker login 10.19.46.15
Username: admin
Password:
Error response from daemon: Get https://10.19.46.15/v2/: dial tcp 10.19.46.15:443: connect: connection refused
這是因為docker1.3.2版本開始默認docker registry使用的是https，我們設置Harbor默認http方式，所以當執行用docker login、pull、push等命令操作非https的docker regsitry的時就會報錯。
解決https

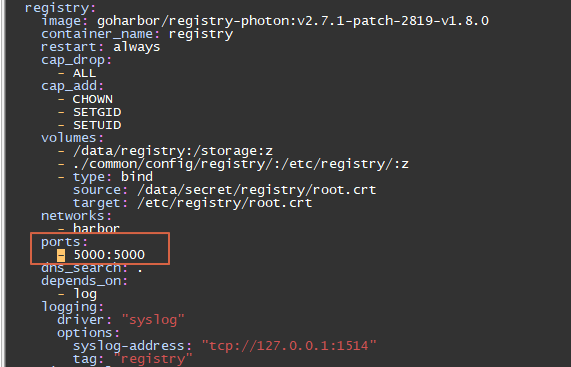

在harbor那臺服務器,在harbor的安裝目錄
然后同時編輯harbor和client的docker配置文件,10.19.46.15 是harbor的ip地址
# 1.
vim /etc/docker/daemon.json
{
"insecure-registries": [
"10.19.46.15"
]
}
# 2.添加ExecStart=/usr/bin/dockerd |--insecure-registry=10.19.46.15
vim /usr/lib/systemd/system/docker.service
# 把這行注釋掉,添加下面的配置 ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
ExecStart=/usr/bin/dockerd
|--insecure-registry=10.19.46.15
1.重啟harbor 的 docker-compose,命令文上有
2.重啟docker
systemctl daemon-reload
systemctl restart docker
client 登錄倉庫
[root@client ~]# docker login 10.19.46.15
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
偷工減料

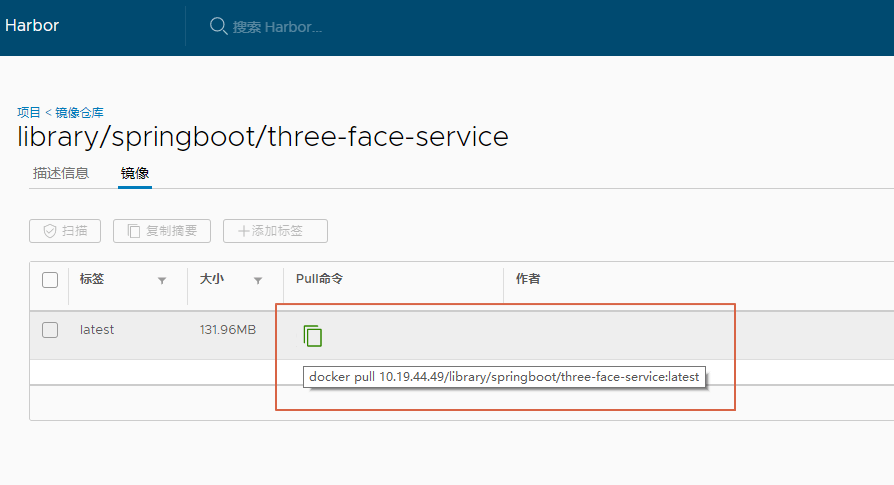

pull 的命令
推送和打tag的命令
