技術背景

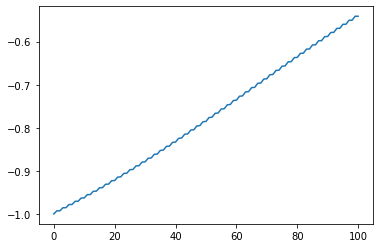

對于各行各業的研究人員來說，經常會面臨這樣的一個問題：有一篇不錯的文章里面有很好的數據，但是這個數據在文章中僅以圖片的形式出現。而假如我們希望可以從該圖片中提取出數據，這樣就可以用我們自己的形式重新來展現這些數據，還可以額外再附上自己優化后的數據。因此從論文圖片中提取數據，是一個非常實際的需求。這里以前面寫的量子退火的博客為例，博客中有這樣的一張圖片：
在這篇文章中，我們將介紹如何使用python從圖片上把數據摳取出來。
plotdigitizer的安裝
這里我們使用pip來安裝python第三方庫plotdigitizer，該庫的主要功能就是可以自動化的從圖片中提取出數據，我們可以使用騰訊的pip鏡像源來加速我們的安裝過程：
[dechin@dechin-manjaro plotdigitizer]$ python3 -m pip install -i https://mirrors.cloud.tencent.com/pypi/simple plotdigitizer
Looking in indexes: https://mirrors.cloud.tencent.com/pypi/simple
Collecting plotdigitizer
Downloading https://mirrors.cloud.tencent.com/pypi/packages/89/bb/ff753093458c05ce3b52fd17527b6b0622ca096aadcf561c6316320ab793/plotdigitizer-0.1.3-py3-none-any.whl (20 kB)
Collecting loguru0.6.0,>=0.5.3
Downloading https://mirrors.cloud.tencent.com/pypi/packages/6d/48/0a7d5847e3de329f1d0134baf707b689700b53bd3066a5a8cfd94b3c9fc8/loguru-0.5.3-py3-none-any.whl (57 kB)
|████████████████████████████████| 57 kB 521 kB/s
Collecting opencv-python5.0.0,>=4.5.1
Downloading https://mirrors.cloud.tencent.com/pypi/packages/2a/9a/ff309b530ac1b029bfdb9af3a95eaff0f5f45f6a2dbe37b3454ae8412f4c/opencv_python-4.5.1.48-cp38-cp38-manylinux2014_x86_64.whl (50.4 MB)
|████████████████████████████████| 50.4 MB 467 kB/s
Collecting numpy2.0.0,>=1.19.5
Downloading https://mirrors.cloud.tencent.com/pypi/packages/c7/e6/dccac76b7e825915ffb906beeba5a953597b6cfe1fe686b5276e122cb07c/numpy-1.20.1-cp38-cp38-manylinux2010_x86_64.whl (15.4 MB)
|████████████████████████████████| 15.4 MB 20.4 MB/s
Collecting matplotlib4.0.0,>=3.3.4
Downloading https://mirrors.cloud.tencent.com/pypi/packages/ab/20/60cfe5d611ac86df07b7b1f9b9582f22f7eda5edbe2124ba85bdf3133822/matplotlib-3.3.4-cp38-cp38-manylinux1_x86_64.whl (11.6 MB)
|████████████████████████████████| 11.6 MB 4.4 MB/s
Requirement already satisfied: python-dateutil>=2.1 in /home/dechin/anaconda3/lib/python3.8/site-packages (from matplotlib4.0.0,>=3.3.4->plotdigitizer) (2.8.1)
Requirement already satisfied: cycler>=0.10 in /home/dechin/anaconda3/lib/python3.8/site-packages (from matplotlib4.0.0,>=3.3.4->plotdigitizer) (0.10.0)
Requirement already satisfied: pillow>=6.2.0 in /home/dechin/anaconda3/lib/python3.8/site-packages (from matplotlib4.0.0,>=3.3.4->plotdigitizer) (8.0.1)
Requirement already satisfied: kiwisolver>=1.0.1 in /home/dechin/anaconda3/lib/python3.8/site-packages (from matplotlib4.0.0,>=3.3.4->plotdigitizer) (1.3.0)
Requirement already satisfied: pyparsing!=2.0.4,!=2.1.2,!=2.1.6,>=2.0.3 in /home/dechin/anaconda3/lib/python3.8/site-packages (from matplotlib4.0.0,>=3.3.4->plotdigitizer) (2.4.7)
Requirement already satisfied: six>=1.5 in /home/dechin/anaconda3/lib/python3.8/site-packages (from python-dateutil>=2.1->matplotlib4.0.0,>=3.3.4->plotdigitizer) (1.15.0)
Installing collected packages: loguru, numpy, opencv-python, matplotlib, plotdigitizer
Attempting uninstall: numpy
Found existing installation: numpy 1.19.2
Uninstalling numpy-1.19.2:
Successfully uninstalled numpy-1.19.2
Attempting uninstall: matplotlib
Found existing installation: matplotlib 3.3.2
Uninstalling matplotlib-3.3.2:
Successfully uninstalled matplotlib-3.3.2
Successfully installed loguru-0.5.3 matplotlib-3.3.4 numpy-1.20.1 opencv-python-4.5.1.48 plotdigitizer-0.1.3
通過運行幫助指令，我們可以查看是否安裝成功：
[dechin@dechin-manjaro plotdigitizer]$ plotdigitizer -h
usage: plotdigitizer [-h] --data-point DATA_POINT [--location LOCATION] [--plot PLOT] [--output OUTPUT]
[--preprocess] [--debug]
INPUT
Digitize image.
positional arguments:
INPUT Input image file.
optional arguments:
-h, --help show this help message and exit
--data-point DATA_POINT, -p DATA_POINT
Datapoints (min 3 required). You have to click on them later. At least 3 points
are recommended. e.g -p 0,0 -p 10,0 -p 0,1 Make sure that point are comma
separated without any space.
--location LOCATION, -l LOCATION
Location of a points on figure in pixels (integer). These values should appear in
the same order as -p option. If not given, you will be asked to click on the
figure.
--plot PLOT Plot the final result. Requires matplotlib.
--output OUTPUT, -o OUTPUT
Name of the output file else trajectory will be written to INPUT>.traj.csv
--preprocess Preprocess the image. Useful with bad resolution images.
--debug Enable debug logger
執行指令與輸出圖片

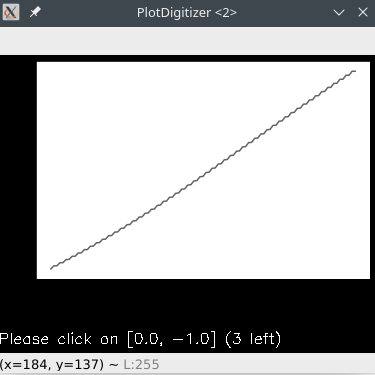

先把需要摳取數據的圖片放到當前目錄下，然后運行如下指令：
plotdigitizer ./test1.png -p 0,-1 -p 20,0 -p 0,0.1 --plot output.png
該指令會將test1.png中的數據提取出來，可以使用-o存儲為csv格式的數據表格。這里實際使用中我們發現，即使不用plot指令，也會在Manjaro Linux系統下不斷的輸出打印圖片，只有通過kill -9的方式才能強行將進程殺死，有可能是開源庫中存在的某個bug。這里展示一下用新的數據繪制出來的效果圖：
執行結束后，該圖片會被輸出到臨時文件夾tmp/plotdigitizer/下，但是注意前面產生的圖片會被后來的臨時文件所覆蓋。
總結概要
這里我們僅僅是介紹和演示了plotdigitizer的基本使用方法，這樣一個使用python制作的圖像數據工具更加符合pythoner的使用習慣和邏輯。雖然實際使用過程中工具可能出現各種各樣的問題，但是基本上是一個比較好的工具，值得推薦。
版權聲明
本文首發鏈接為：https://www.cnblogs.com/dechinphy/p/plotdigitizer.html
作者ID：DechinPhy
更多原著文章請參考：https://www.cnblogs.com/dechinphy/
